Toyota Yaris: Windshield wiper and washer

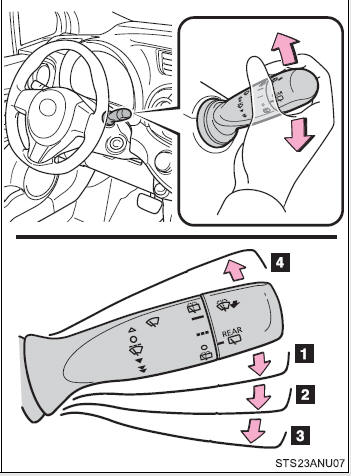

The wiper operation is selected by moving the lever as follows:
Type A
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation

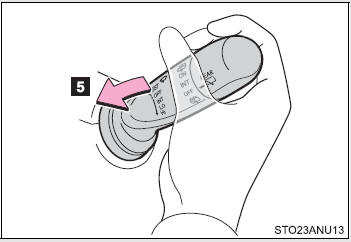

Washer/wiper dual operation
The wipers will automatically operate a couple of times after the washer squirts.
Type B
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation

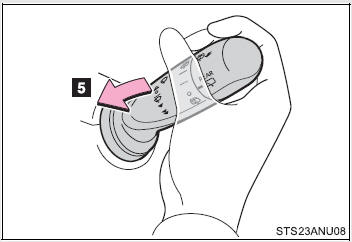

Washer/wiper dual operation
The wipers will automatically operate a couple of times after the washer squirts.
■The windshield wiper and washer can be operated when
The engine switch is in the “ON” position.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
