Toyota Yaris: Rear window wiper and washer - Operating the lights and wipers - When driving - Toyota Yaris XP130 2010–2025 Owner's ManualToyota Yaris: Rear window wiper and washer

The wiper operation is selected by moving the lever as follows:

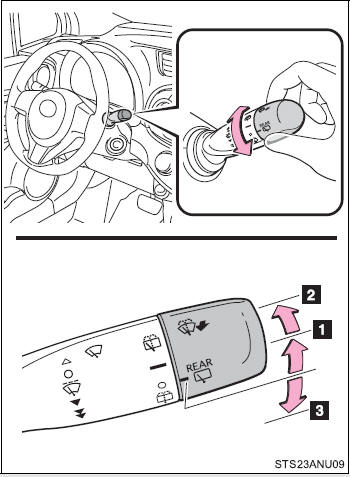

Vehicles without intermittent rear wiper (Type A)

Normal window wiper operation

Normal window wiper operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer operation

Washer operation

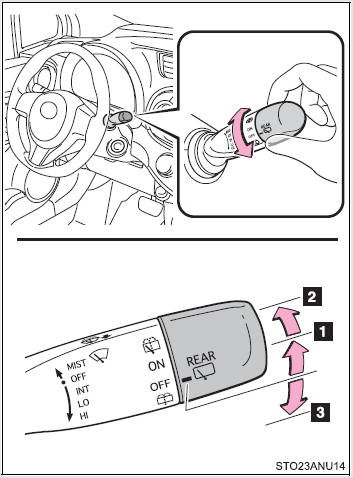

Vehicles without intermittent rear wiper (Type B)

Normal window wiper operation

Normal window wiper operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer operation

Washer operation

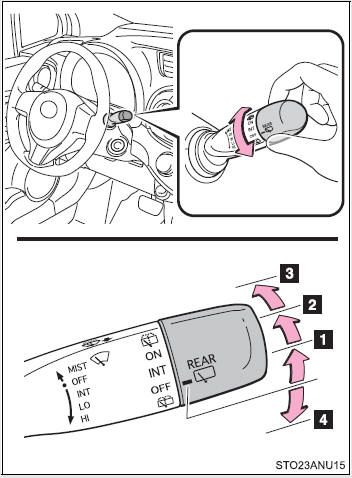

Vehicles with intermittent rear wiper (Type A)

Intermittent window wiper operation

Intermittent window wiper operation

Normal window wiper operation

Normal window wiper operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer/wiper dual operation

The wiper will automatically operate a couple of time after the wiper squirts.

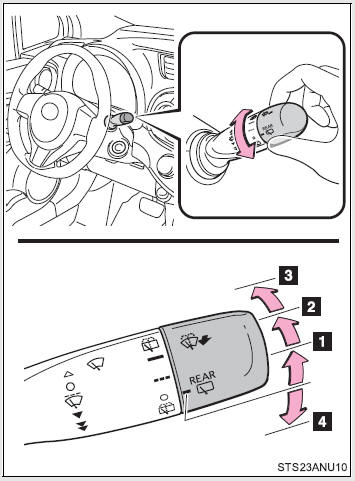

Vehicles with intermittent rear wiper (Type B)

Intermittent window wiper operation

Intermittent window wiper operation

Normal window wiper operation

Normal window wiper operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer/wiper dual operation

Washer/wiper dual operation

The wiper will automatically operate a couple of time after the wiper squirts.

■The rear window wiper and washer can be operated when

The engine switch is in the “ON” position.

■If no washer fluid sprays

Check that the washer nozzle is not blocked, if there is washer fluid in the washer fluid reservoir.

NOTICE

■When the rear window is dry

Do not use the wipers, as it may damage the rear window.

■When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may overheat.

■When a nozzle becomes blocked

In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
