Toyota Yaris: Fog light switch - Operating the lights and wipers - When driving - Toyota Yaris XP130 2010–2022 Owner's ManualToyota Yaris: Fog light switch

The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog.

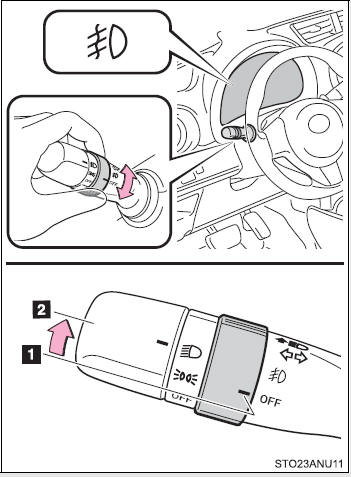

Type A

Turns the front fog lights off

Turns the front fog lights off

Turns the front fog lights on

Turns the front fog lights on

Type B

Turns the front fog lights off

Turns the front fog lights off

Turns the front fog lights on

Turns the front fog lights on

■Fog lights can be used when

The headlights are on in low beam.
