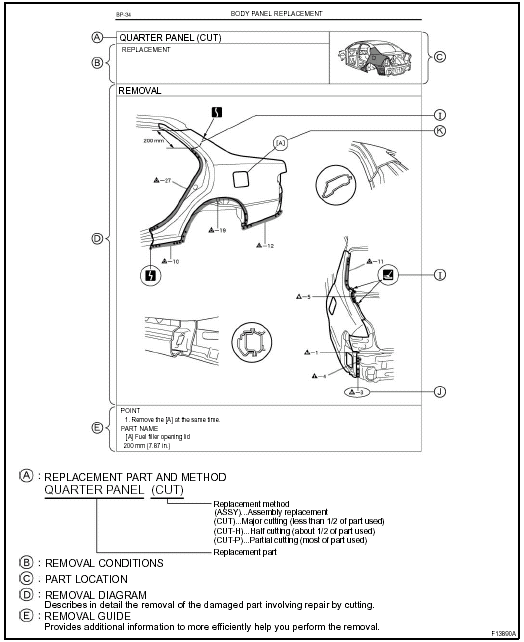

1. BODY PANEL REPLACEMENT IN THIS MANUAL

2. SYMBOLS

2. SYMBOLS

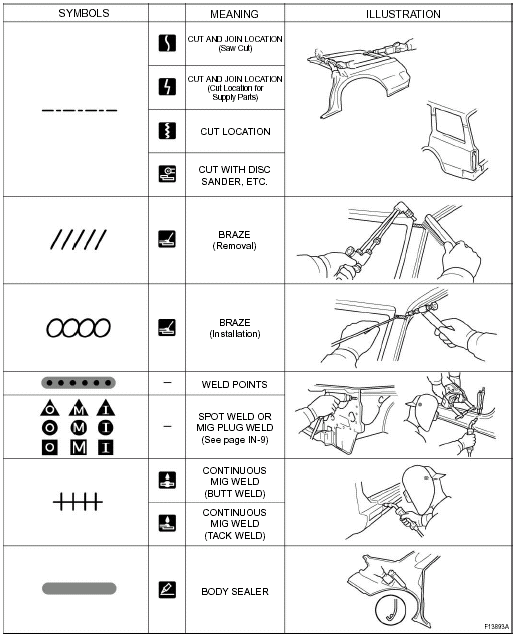

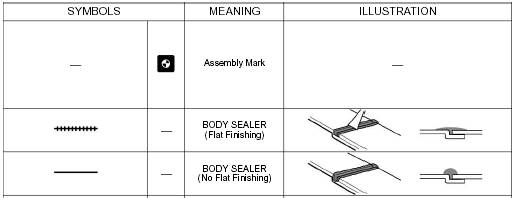

The following symbols are used in the welding diagrams in section BP of this manual to indicate cutting areas and the types of weld required.

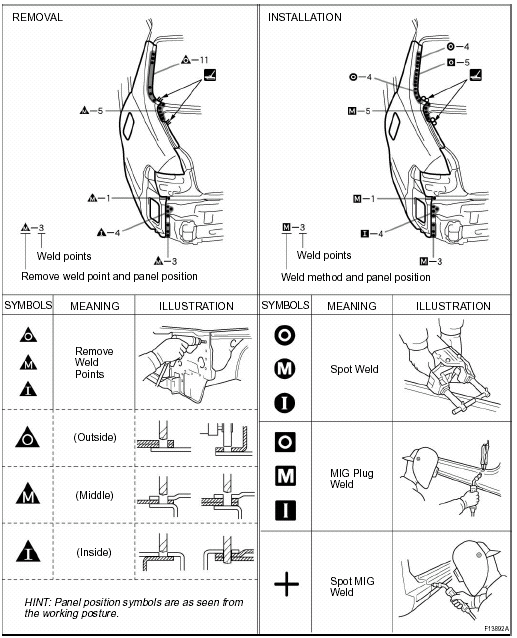

3. ILLUSTRATION OF WELD POINT SYMBOLS

3. ILLUSTRATION OF WELD POINT SYMBOLS

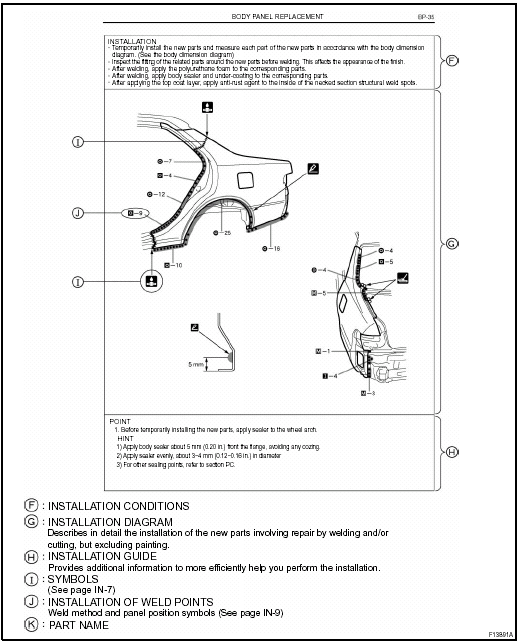

EXAMPLE:

Proper and efficient work procedures

    General repair instructions
    1. WORK PRECAUTIONS (a) VEHICLE PROTECTION. (1) When welding, protect the painted surfaces, windows, seats and carpet with heat resistant, fireproof covers. (b) SAFETY. (1) Never stand in a ...

    Proper and efficient work procedures
    1. REMOVAL (a) PRE-REMOVAL MEASURING. (1) Before removal or cutting operations, take measurements in accordance with the dimensions diagram. Always use a puller to straighten a damaged body or f ...
