Toyota Yaris: Front fender apron (ASSY)
REPLACEMENT
With the cowl top side panel removed.

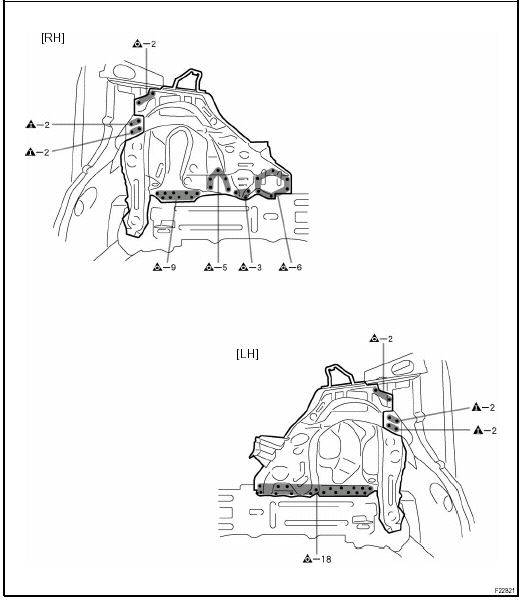

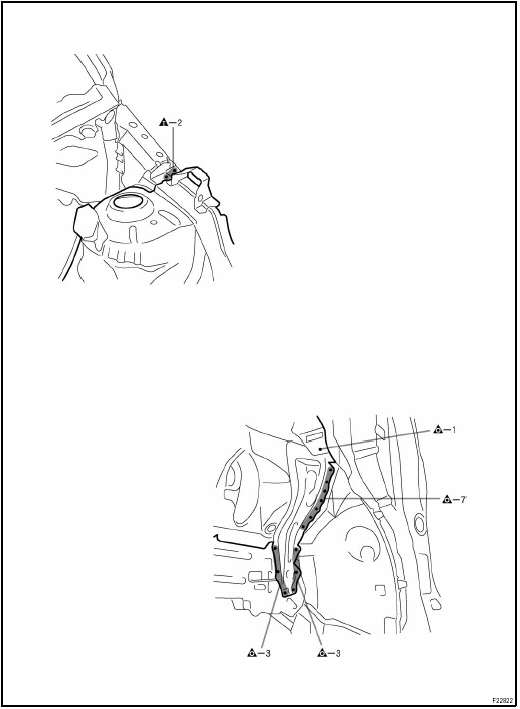

REMOVAL

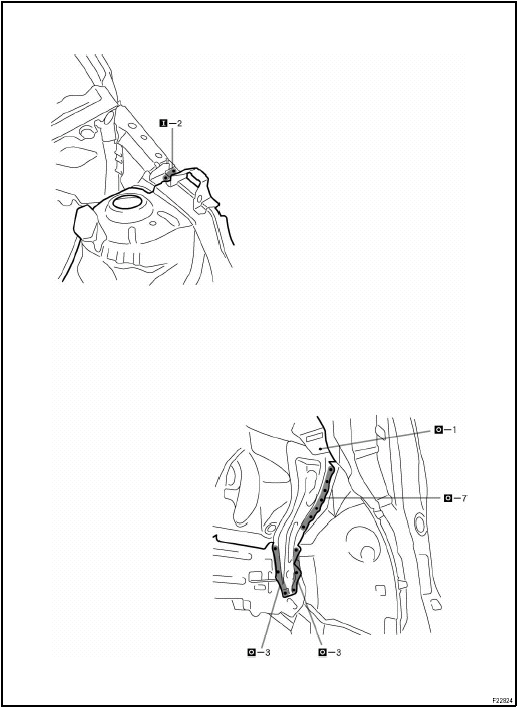

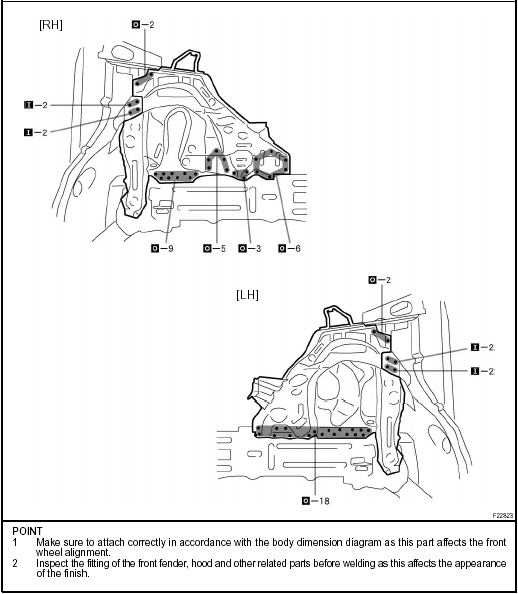

INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
After welding, apply the polyurethane foam to the corresponding parts.
After welding, apply body sealer and under-coating to the corresponding parts.
After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.
Roof panel (ASSY): Hatchback
REPLACEMENT
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. (See the body dimension diagram) Inspe ...
Roof panel (ASSY): Sedan
REPLACEMENT
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. (See the body dimension diagram) Inspe ...
See also:
Quarter panel (CUT): Hatchback 5 Door
REPLACEMENT
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. (See the body dimension diagram) Ins ...
How to use this manual
1. BODY PANEL REPLACEMENT IN THIS MANUAL
2. SYMBOLS
The following symbols are used in the welding diagrams in section BP of this
manual to indicate cutting areas and the types of weld required ...
Body panel anti-rust agent (wax) application areas
HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the
doors and hoods.
2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire
application area ...
