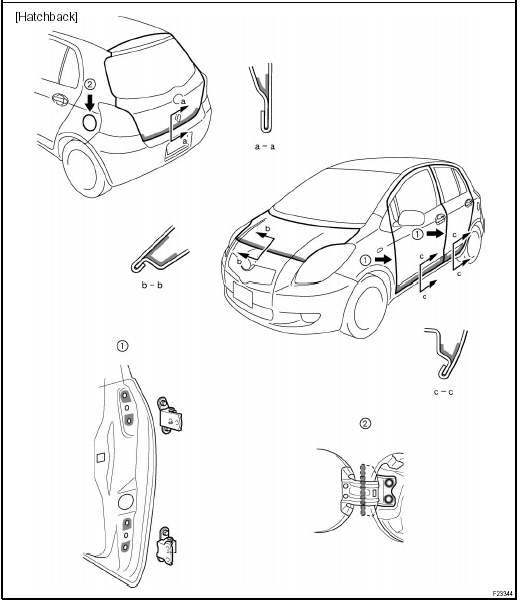

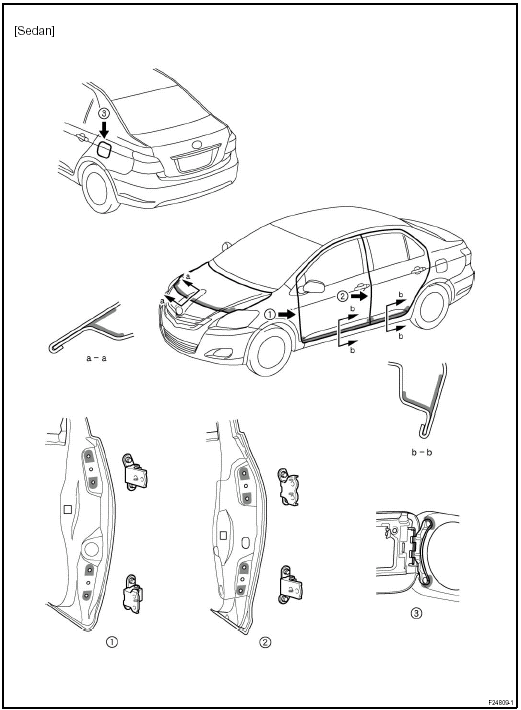

Toyota Yaris: Body panel anti-rust agent (wax) application areas - Paint coating - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body panel anti-rust agent (wax) application areas

HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the doors and hoods.

2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire application area of the part.

3) Wipe off the anti-rust agent immediately with a rag soaked in silicone remover if it is accidentally applied to other areas.
