Toyota Yaris: Steering wheel
The steering wheel can be adjusted to a comfortable position.

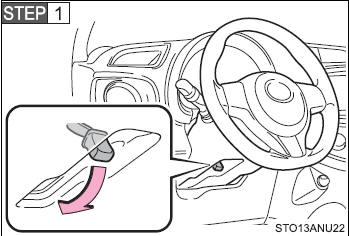

Hold the steering wheel and push the lever down.
Adjust to the ideal position by moving the steering wheel.
After adjustment, pull the lever up to secure the steering wheel.
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident, and resulting in death or serious injury.
Seat belts
Make sure that all occupants are wearing their seat belts before driving the vehicle.
■ Correct use of the seat belts
● Extend the shoulder belt so that it comes fully over the should ...
Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by using the following functions:
Normal position
Anti-glare position
Adjusting the height of rear view mirror
Adjust the height ...
