Toyota Yaris: Anti-glare inside rear view mirror

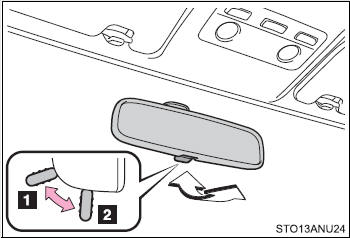

Glare from the headlights of vehicles behind can be reduced by using the following functions:
Normal position
Anti-glare position

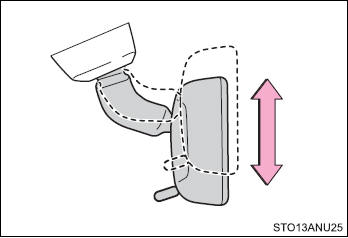

Adjusting the height of rear view mirror
Adjust the height of the rear view mirror by moving it up and down.
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.
Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and push the lever down.
Adjust to the ideal position by moving the steering wheel.
After adjustment, pull ...
Outside rear view mirrors
Mirror angle can be adjusted.
Vehicles with a manually adjustable type
Adjust the mirror up, down, in or out by pushing the mirror surface.
Vehicles with a power-adjustable type
To select a mi ...
