Toyota Yaris: Rear floor side panel extension (ASSY): Hatchback - BODY PANEL REPLACEMENT - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Rear floor side panel extension (ASSY): Hatchback

REPLACEMENT

With the quarter panel and body lower back panel removed.

With the quarter panel and body lower back panel removed.

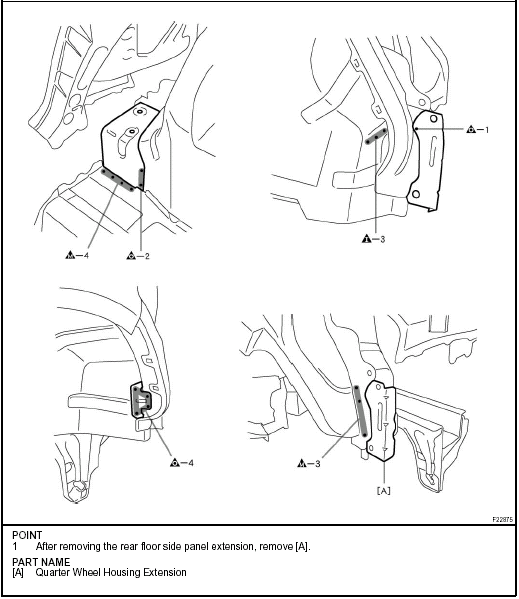

REMOVAL

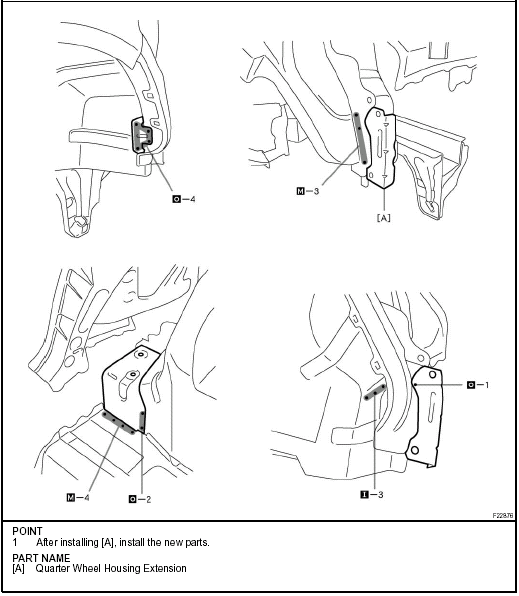

INSTALLATION

INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

After welding, apply the polyurethane foam to the corresponding parts.

After welding, apply body sealer and under-coating to the corresponding parts.

After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.

Rear floor pan (ASSY): Hatchback

    Floor side rail front panel (ASSY): Sedan
    REPLACEMENT With the body lower back panel removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagra ...

    Rear floor pan (ASSY): Hatchback
    REPLACEMENT With the body lower back panel and floor side rail front panel removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordanc ...
