Toyota Yaris: Gauges and meters - Instrument cluster - When driving - Toyota Yaris XP130 2010–2022 Owner's ManualToyota Yaris: Gauges and meters

Vehicles without a tachometer

Speedometer'

Displays the vehicle speed Speedometer'

Displays the vehicle speed

→P. 211 Outside temperature display

→P. 211

Displays the quantity of fuel remaining in the tank Fuel gauge

Displays the quantity of fuel remaining in the tank

→P. 140 Display change button

→P. 140

display Odometer, trip meter and multi-information display

→P. 140

→P. 210 Clock

→P. 210

→P. 210 Clock adjusting buttons

→P. 210

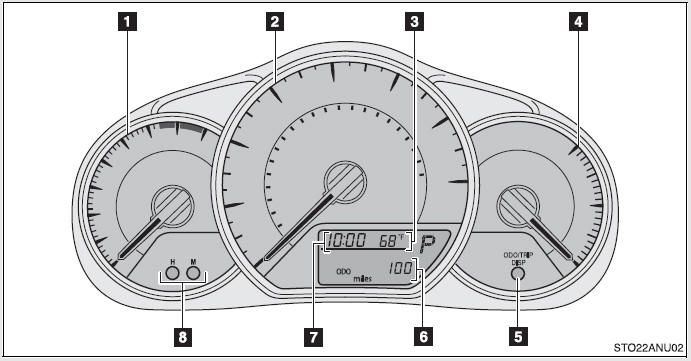

Vehicles with a tachometer

Tachometer

Displays the engine speed in revolutions per minute Tachometer

Displays the engine speed in revolutions per minute

Displays the vehicle speed Speedometer

Displays the vehicle speed

→P. 211 Outside temperature display

→P. 211

Displays the quantity of fuel remaining in the tank Fuel gauge

Displays the quantity of fuel remaining in the tank

→P. 140 Display change button

→P. 140

display Odometer, trip meter and multi-information display

→P. 140

→P. 210 Clock

→P. 210

→P. 210 Clock adjusting buttons

→P. 210

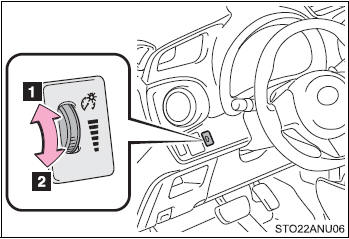

Instrument panel light control

The brightness of the instrument panel lights can be adjusted by turning the dial.

Brighter

Darker Brighter

■The meters and display operate when Darker

■The meters and display operate when

The engine switch is in the “ON” position.

NOTICE

■To prevent damage to the engine and its components

●On vehicles with a tachometer, do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
●The engine may be overheating if the high engine coolant temperature warning light flashes or comes on. In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely. (→P. 334)
