Toyota Yaris: Floor side rail front panel (ASSY): Sedan - BODY PANEL REPLACEMENT - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Floor side rail front panel (ASSY): Sedan

REPLACEMENT

With the body lower back panel removed.

With the body lower back panel removed.

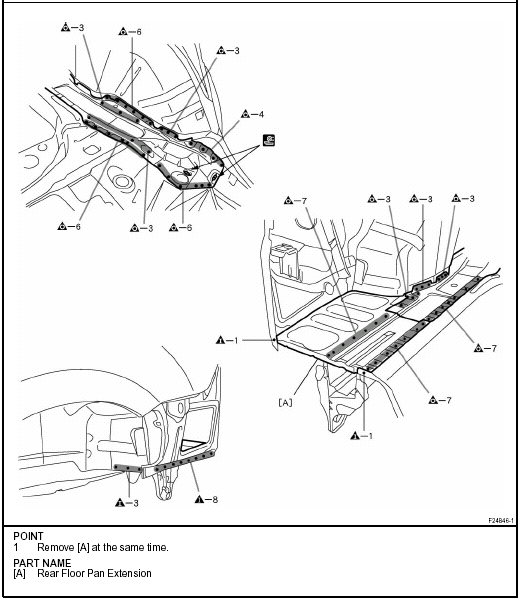

REMOVAL

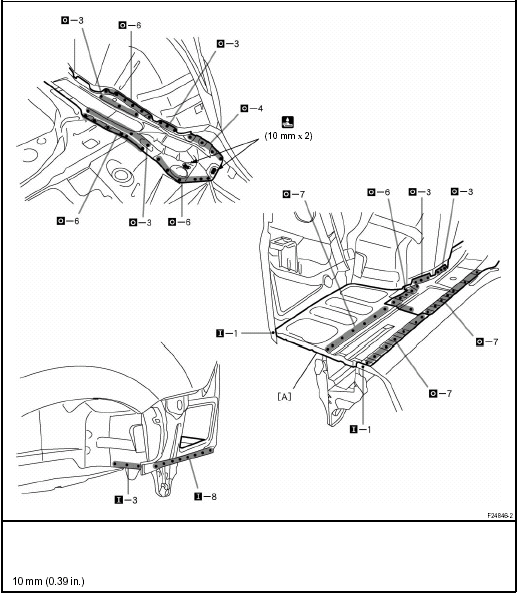

INSTALLATION

INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

After welding, apply polyurethane foam to the corresponding parts.

After welding, apply body sealer and undercoating to the corresponding parts.

After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

Rear floor side panel extension (ASSY): Hatchback

    Floor side rail front panel (ASSY): Hatchback
    REPLACEMENT With the body lower back panel removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagra ...

    Rear floor side panel extension (ASSY): Hatchback
    REPLACEMENT With the quarter panel and body lower back panel removed. REMOVAL     INSTALLATION Temporarily install the new parts and measure each part of the new parts in accord ...
