Rear floor sidemember (ASSY): Sedan

REPLACEMENT With the rear floor pan removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See ...

Front sidemember reinforcement (CUT-P)

REPLACEMENT With the radiator support removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. ...

See also:

Quarter panel (CUT): Hatchback 5 Door
REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Ins ...

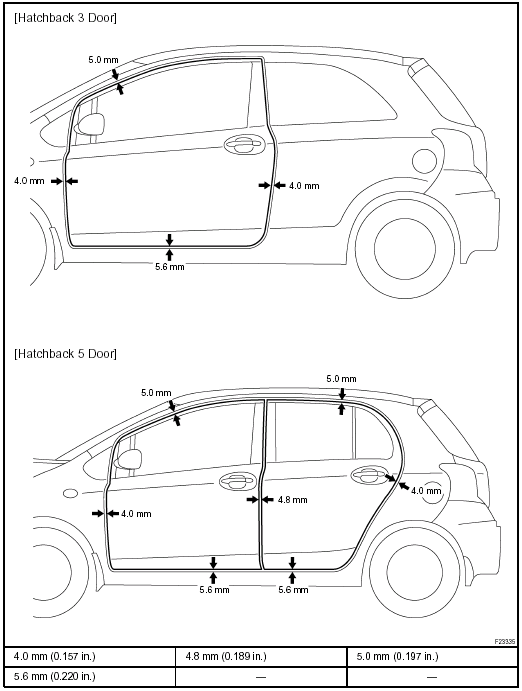

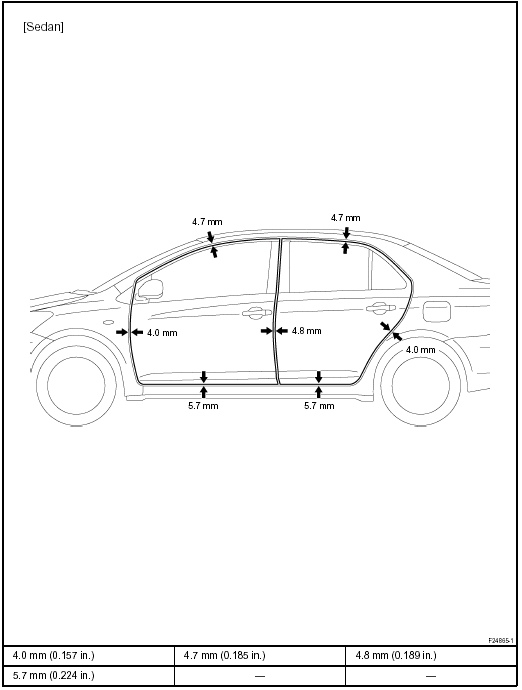

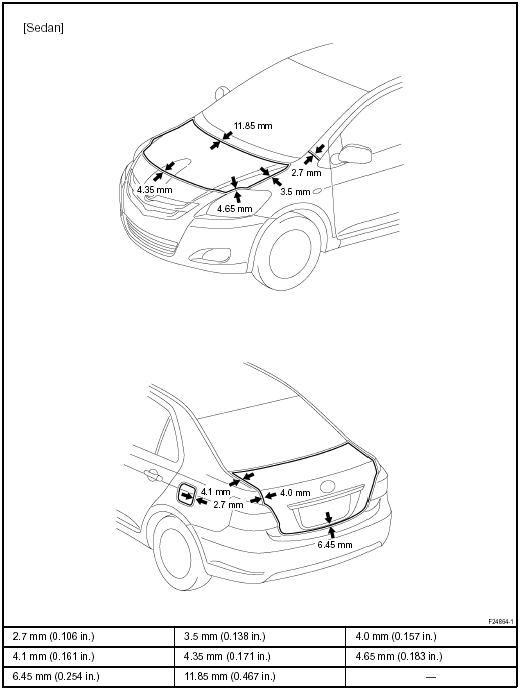

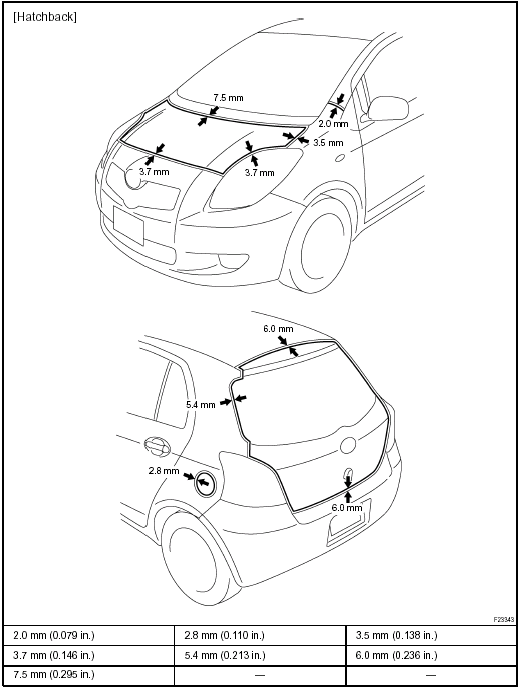

Body dimension drawings
ENGINE COMPARTMENT Hatchback ENGINE COMPARTMENT Sedan BODY OPENING AREAS (Side View) Hatchback 3 Door BODY OPENING AREAS (Side View: Front) Hatchback 5 Door BODY OPENING AREAS (Side View: ...

Fold - down rear seat
BEFORE FOLDING DOWN REAR SEATS 1. Before folding down the seatback, disconnect the center seat belt to prevent damage. Insert the key into the hole on the buckle to release tab 1 (with hook ...
