Toyota RAV4: Before driving - Opening and Closing the Windows and Moon Roof

Use the window and moon roof controls correctly to open, close, or adjust them as needed. Before operating these features, make sure that no passenger has a hand, arm, or other object near the window or moon roof opening. Careful operation helps maintain comfort inside the Toyota RAV4 while reducing the risk of accidental injury or obstruction. The available controls and functions may vary depending on the Toyota RAV4 model and equipment configuration.

Power windows Toyota RAV4 XA50

Opening and closing the power windows

The power windows of the Toyota RAV4 can be opened and closed by operating the corresponding switches. Use the switch assigned to the window you want to adjust, and make sure the window opening is clear before beginning operation.

Operating a power window switch moves the corresponding side window as described below:

1. Closing the side window
2. One-touch closing*
3. Opening the side window
4. One-touch opening*

*: To stop the side window before it becomes fully opened or closed, briefly operate the switch in the direction opposite to its current movement.

■ The power windows can be operated when

The power windows are available for operation when the engine switch is in ON.

■ Operating the power windows after turning the engine off

The Toyota RAV4 power windows can continue to operate for approximately 45 seconds after the engine switch has been turned to ACC or OFF. However, this temporary operating period ends immediately when either front door is opened, after which the power windows can no longer be operated.

■ Jam protection function

If an object becomes trapped between a closing side window and the window frame, the jam protection function stops the window and lowers it slightly. This function is designed to reduce the possibility of an object remaining firmly caught while the side window is closing.

■ Catch protection function

If an object becomes caught between the door and the side window while the window is opening, the catch protection function stops the side window from moving. Always check that passengers and nearby objects are clear of the window before operating it.

■ When the power window cannot be opened or closed

If the jam protection or catch protection function operates abnormally and the affected side window can no longer be opened or closed normally, perform the following operations using the power window switch on that door.

• Stop the Toyota RAV4 in a safe location. With the engine switch in ON, continuously operate the power window switch in the one-touch closing direction or the one-touch opening direction within 4 seconds after the jam protection or catch protection function activates. Continue operating the switch so that the side window can be opened and closed.
• If the side window still cannot be opened or closed after the operation above has been performed, complete the following initialization procedure to restore normal power window operation.

1. Turn the engine switch to ON.

2. Pull and hold the power window switch in the one-touch closing direction until the side window closes completely.

3. Briefly release the power window switch. Then pull it again in the one-touch closing direction and continue holding it for approximately 6 seconds or longer.

4. Press and hold the power window switch in the one-touch opening direction. After the side window has opened completely, continue holding the switch in the same direction for at least 1 additional second.

5. Briefly release the power window switch. Then press it again in the one-touch opening direction and continue holding it for approximately 4 seconds or longer.

6. Pull and hold the power window switch in the one-touch closing direction once again. After the side window has closed completely, continue holding the switch in the same direction for at least 1 additional second to complete the initialization procedure.

If the switch is released while the side window is still moving, the initialization may not be completed correctly. In this case, repeat the entire procedure from the beginning without interrupting the window movement.

If the side window reverses direction or still cannot be fully opened or closed after the procedure has been completed, have your Toyota RAV4 inspected by an authorized Toyota dealer.

■ Door lock linked power window operation

• The power windows can be opened and closed using the key on Toyota RAV4 models without the smart key system or the mechanical key on vehicles equipped with the smart key system.*
• The power windows can also be opened using the wireless remote control.*
• Vehicles equipped with an alarm: If the alarm is set, it may be triggered when a power window is closed using the door lock linked power window operation function.

*: These functions must be enabled or customized by your Toyota dealer before they can be used.

■ Power window open reminder function

Vehicles without smart key system

A buzzer sounds and a warning message appears on the multi-information display when the key has been removed from the engine switch and the driver’s door is opened while one or more power windows remain open. This reminder helps prevent the Toyota RAV4 from being left unattended with an open window.

Vehicles with smart key system

A buzzer sounds and a warning message is displayed on the multi-information display when the engine switch is turned to OFF and the driver’s door is opened while one or more power windows remain open.

■ Customization

Certain settings, including the linked door lock operation of the power windows, can be changed. Contact your Toyota dealer for information about the customization options available for your Toyota RAV4.

WARNING
Observe the following precautions.

Failure to follow these precautions may result in death or serious injury.

■ Closing the power windows

• The driver is responsible for every power window operation, including operation of the windows used by passengers. To prevent accidental activation, especially by a child, never allow a child to operate the power windows. A child or another passenger could have a hand, arm, head, or other body part caught by a moving window.

  When traveling with a child in the Toyota RAV4, it is also recommended that the window lock switch be used to prevent unintended operation of the passenger windows.

• Before operating any power window, confirm that all passengers are clear of the window opening and that no part of anyone’s body is positioned where it could become trapped as the window moves.

• When operating the power windows with the wireless remote control, key, or mechanical key, first confirm that no passenger has a hand, arm, head, or any other part of their body in a position where it could become trapped by a moving side window. Never allow a child to operate the Toyota RAV4 power windows using the wireless remote control, key, or mechanical key. Children and other passengers may not recognize the danger and could be caught by a closing window.
• When leaving the vehicle, turn the engine switch to OFF, take the key with you, and make sure that every child exits the vehicle as well. Leaving a child unattended inside the Toyota RAV4 may result in accidental power window operation through play or misuse, potentially causing a serious accident.

■ Jam protection function

• Never place any part of your body in the window opening to intentionally test or activate the jam protection function.
• The jam protection function may not operate if an object becomes trapped immediately before the side window reaches the fully closed position. Always keep hands, fingers, and other body parts away from the window opening while the side window is closing.

■ Catch protection function

• Never use any part of your body or clothing to deliberately activate or test the catch protection function.
• The catch protection function may not operate if an object becomes caught immediately before the side window reaches the fully open position. Make sure that hands, arms, loose clothing, and other items remain clear of the moving window.

Preventing accidental operation (window lock switch)

The window lock switch can be used to prevent children or other passengers from accidentally opening or closing a passenger-side window. This function is particularly useful when young passengers are traveling in the Toyota RAV4.

Press the window lock switch to activate the function.

Indicator A will illuminate, confirming that operation of the passenger windows has been locked.

Even when the window lock switch is active, the driver can continue to open and close the passenger windows using the power window switches on the driver’s door.

■ The window lock switch can be operated when

The window lock switch can be operated while the engine switch is in ON.

■ When the battery is disconnected

The window lock function is disabled when the vehicle battery is disconnected.

After the battery has been reconnected, press the window lock switch again if passenger window operation needs to be restricted.

Moon roof Toyota RAV4 fifth generation

Use the overhead switches to open, close, tilt up, or tilt down the moon roof. Before operating it, confirm that the opening is clear and that all passengers are safely positioned inside the Toyota RAV4.

Operating the moon roof

■ Opening and closing

1. Opens the moon roof*
   The moon roof automatically stops slightly before reaching the fully open position to help reduce wind noise inside the cabin.

   Press the switch again when you want to move the moon roof from this position to the fully open position.

2. Closes the moon roof*

*: Lightly press either side of the moon roof switch while the panel is moving to stop the moon roof at an intermediate position.

■ Tilting up and down

1. Tilts the moon roof up*
2. Tilts the moon roof down*

*: Lightly press either side of the moon roof switch to stop the moon roof partway through its tilt movement.

■ The moon roof can be operated when

The moon roof can be operated when the engine switch is in ON.

■ Operating the moon roof after turning the engine off

The Toyota RAV4 moon roof remains operational for approximately 45 seconds after the engine switch has been turned to ACC or OFF. However, this temporary operating period ends as soon as either front door is opened.

■ Jam protection function

If an object is detected between the moon roof and its surrounding frame while the panel is closing or tilting downward, movement stops and the moon roof opens slightly. Although this function helps reduce the risk of entrapment, the opening should always be checked before operating the moon roof.

■ Sunshade

The sunshade can be opened and closed manually to control the amount of sunlight entering the cabin. When the moon roof is opened, the sunshade moves open automatically to provide the necessary clearance.

■ Door lock linked moon roof operation

• The moon roof can be opened and closed by using the mechanical key.*
• The moon roof can be opened by using the wireless remote control.*
• Vehicles equipped with an alarm: If the alarm is set, it may be activated when the moon roof is closed using the door lock linked moon roof operation function.

*: These functions must be enabled or customized by your Toyota dealer before they can be used.

■ When the moon roof does not close normally

If the moon roof does not close in the usual manner, perform the following procedure carefully and without releasing the specified switch prematurely:

1. Stop the Toyota RAV4 in a safe location.

2. Press and hold the "CLOSE" switch.* The moon roof will close, reopen, and pause for approximately 10 seconds. It will then close again and stop when it reaches the completely closed position.

3. Confirm that the moon roof is fully closed, and then release the switch.

*: If the switch is released at the incorrect time, the sequence will be interrupted and the procedure must be repeated from the beginning.

If the moon roof still does not close completely after the procedure has been performed correctly, have the vehicle inspected by your Toyota dealer.

■ If the moon roof does not move normally

If the moon roof does not open or close correctly, or if the automatic opening function is unavailable, perform the following initialization procedure.

1. Stop the vehicle in a safe place.

2. Press and hold the "DOWN" switch.* The moon roof will first stop in the tilt-up position. It will then open, close, tilt upward, tilt downward, and finally stop in the fully closed position.

3. Confirm that the moon roof has completely stopped moving, and then release the switch.

*: If the switch is released while the moon roof is still moving, the initialization sequence may not be completed. Repeat the procedure from the beginning.

If the moon roof still does not open or close normally, or the automatic opening function remains unavailable after the procedures have been completed correctly, have your Toyota RAV4 inspected by a Toyota dealer.

■ Moon roof open reminder function

If the engine switch is turned to OFF and the driver’s door is opened while the moon roof remains open, a buzzer sounds and a reminder message appears on the multi-information display. This notification helps prevent the vehicle from being left unattended with the moon roof open.

■ Customization

Certain moon roof settings, including the linked door lock operation, can be changed. Contact your Toyota dealer for details about the customization options available for your Toyota RAV4.

WARNING
Observe the following precautions.

Failure to follow these precautions may result in death or serious injury.

■ Opening the moon roof

• Do not allow passengers to extend their hands, arms, head, or any other part of their body through the moon roof while the vehicle is moving.
• Never sit, stand, or place weight on top of the moon roof.

■ Opening and closing the moon roof

• The driver is responsible for every moon roof opening, closing, and tilting operation.

  To prevent accidental operation, particularly by a child, never allow a child to operate the moon roof. A child or another passenger could have a hand, arm, head, or other body part trapped by the moving panel.

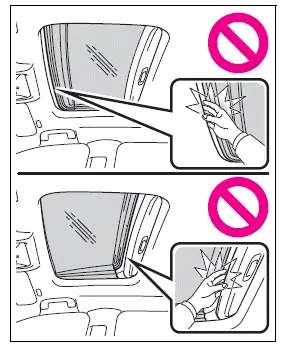

• Before operating the moon roof, check that every passenger is clear of the opening and that no part of anyone’s body is positioned where it could become caught as the panel moves.

• Before operating the moon roof with the wireless remote control or mechanical key, confirm that no passenger has any part of their body near the moon roof opening. Never allow a child to operate the Toyota RAV4 moon roof using the wireless remote control or mechanical key, as children and other passengers could become trapped by the moving panel.
• When leaving the vehicle, turn the engine switch to OFF, take the key with you, and make sure that every child exits the vehicle. Leaving a child unattended may lead to accidental moon roof operation through play or misuse and could result in a serious accident.

■ Jam protection function

• Never use a hand, arm, head, or any other part of your body to deliberately test or activate the jam protection function.
• The jam protection function may not operate if an object becomes trapped immediately before the moon roof reaches the fully closed position. The function is also not designed to operate while the switch is being continuously pressed. Keep fingers and all other body parts away from the opening whenever the moon roof is moving.

Panoramic moon roof Toyota RAV4 hybrid

Use the overhead switches to operate the panoramic moon roof and electronic sunshade. Before using either feature, make sure that the roof opening is clear and all passengers are safely positioned inside the Toyota RAV4.

Operating the electronic sunshade and panoramic moon roof

■ Opening and closing the electronic sunshade

1. Opens the electronic sunshade*

Slide and hold the switch backward. The electronic sunshade will open fully and stop automatically.

2. Closes the electronic sunshade*

Slide and hold the switch forward.

The electronic sunshade will close completely and stop automatically.

If the panoramic moon roof is not fully closed, it will first move to the completely closed position before the electronic sunshade begins closing. This operating sequence prevents the sunshade from closing while the roof panel remains open.

*: Quickly slide and release the switch in either direction to stop the electronic sunshade at an intermediate position.

■ Tilting the panoramic moon roof up and down

Press the switch to tilt the panoramic moon roof upward.* When the panoramic moon roof is tilted up, the electronic sunshade automatically opens to the roof’s half-open position, providing the clearance required for ventilation.

*: Lightly press the switch again while the roof is moving to stop the panoramic moon roof partway.

Press and hold the switch to tilt the panoramic moon roof downward.

The panoramic moon roof can be tilted down only when it is currently in the tilt-up position.

■ Opening and closing the panoramic moon roof

Opens the panoramic moon roof*

Slide and hold the switch backward. The panoramic moon roof and electronic sunshade will open automatically, allowing both components to move in the correct sequence.

The panoramic moon roof can also be opened directly from the tilt-up position.

*: Quickly slide and release the switch in either direction to stop the panoramic moon roof before it reaches the fully open position.

Closes the panoramic moon roof

Slide and hold the switch forward.

The panoramic moon roof will close completely and stop automatically. Before closing it, confirm that no passenger, clothing, or object is positioned near the roof opening.

■ The panoramic moon roof can be operated when

The panoramic moon roof and electronic sunshade can be operated while the engine switch is in ON.

■ Operating the panoramic moon roof after turning the engine off

The Toyota RAV4 panoramic moon roof and electronic sunshade remain available for approximately 45 seconds after the engine switch has been turned to ACC or OFF. However, this temporary operating period ends immediately when either front door is opened.

■ Jam protection function

If an object is detected between the panoramic moon roof and its surrounding frame during any of the following operations, movement stops and the panoramic moon roof opens slightly. Although this function helps reduce the risk of entrapment, the roof opening should always be checked before operating the controls.

• The panoramic moon roof is closing or tilting downward.
• The electronic sunshade is closing.

■ Closing both the panoramic moon roof and electronic sunshade

Slide the switch forward.

The electronic sunshade will first move to the half-open position and pause, allowing the roof components to close in the correct sequence.

The panoramic moon roof will then close completely. After the roof panel reaches the fully closed position, the electronic sunshade will resume moving and close fully.

■ Door lock linked panoramic moon roof operation

• The panoramic moon roof can be opened and closed using the mechanical key.*
• The panoramic moon roof can be opened using the wireless remote control.*
• Vehicles equipped with an alarm: If the alarm is set, it may be triggered when the panoramic moon roof is closed using the door lock linked panoramic moon roof operation function.

*: These functions must be enabled or customized by your Toyota dealer before they can be used on the Toyota RAV4.

■ When the panoramic moon roof or electronic sunshade does not close normally

If the panoramic moon roof or electronic sunshade does not close as expected, perform the following procedure carefully:

1. Stop the vehicle in a safe location.

2. Turn the engine switch to ON.

3. Slide and hold the switch or switch forward. After the panoramic moon roof or electronic sunshade closes and then reopens, continue sliding and holding the selected switch for approximately 10 seconds. The panoramic moon roof and electronic sunshade will then begin closing again.*

4. Confirm that both the panoramic moon roof and electronic sunshade have reached their fully closed positions, and then release the switch.

*: If the switch is released at the wrong point during the sequence, initialization will not be completed and the entire procedure must be repeated from the beginning.

If the panoramic moon roof or electronic sunshade still does not close fully after the procedure has been performed correctly, have your Toyota RAV4 inspected by a Toyota dealer.

■ Panoramic moon roof open reminder function

If the engine switch is turned to OFF and the driver’s door is opened while the panoramic moon roof remains open, a buzzer sounds and a reminder message appears on the multi-information display. This notification helps prevent the Toyota RAV4 from being left unattended with the roof open.

■ Customization

Certain settings, including the door lock linked operation of the panoramic moon roof, can be changed. Contact your Toyota dealer for information about the available customization options.

WARNING
Observe the following precautions.

Failure to follow these precautions may result in death or serious injury.

■ Opening and closing the electronic sunshade

• Before operating the electronic sunshade, make sure that no passenger has a hand, arm, head, or any other part of their body in a position where it could become caught by the moving sunshade.

• Never allow a child to operate the electronic sunshade. If the sunshade closes on a passenger or traps part of their body, death or serious injury may result.

■ Opening the panoramic moon roof

• Do not allow any passenger to extend their hands, arms, head, or any other part of their body through the panoramic moon roof while the vehicle is moving.
• Never sit, stand, or place body weight on top of the panoramic moon roof.

■ Opening and closing the panoramic moon roof

The driver is responsible for every panoramic moon roof opening and closing operation in the Toyota RAV4.

To prevent unintended operation, particularly when children are present, never allow a child to control the panoramic moon roof. Children and other passengers could have their hands, arms, head, or other body parts trapped by the moving roof panel.

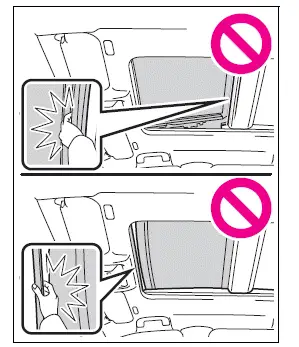

• Before operating the panoramic moon roof, confirm that every passenger is clear of the opening and that no part of anyone’s body is positioned where it could become caught as the roof moves.

• Before opening or closing the panoramic moon roof with the wireless remote control or mechanical key, carefully check that no passenger has a hand, arm, head, or other body part near the roof opening. Never allow a child to operate the Toyota RAV4 panoramic moon roof using the wireless remote control or mechanical key, as the moving panel could trap a child or another passenger.
• When leaving the vehicle, turn the engine switch to OFF, take the key with you, and make sure that every child exits the vehicle. A child left unattended inside the Toyota RAV4 could operate the controls accidentally or while playing, potentially causing a serious accident.

■ Jam protection function

• Never place any part of your body in the roof opening to deliberately test or activate the jam protection function.
• The jam protection function may not operate if an object becomes trapped immediately before the panoramic moon roof or electronic sunshade reaches the fully closed position. The function is also not designed to operate while the control switch is being continuously pressed.

  Always keep your fingers, hands, clothing, and other objects away from the moving panoramic moon roof and electronic sunshade.

■ To prevent burns or injuries

Do not touch or place your hand in the space between the underside of the panoramic moon roof and the electronic sunshade.

Your hand could become trapped between these components and cause an injury.

If the vehicle has remained in direct sunlight for an extended period, the underside of the panoramic moon roof may become extremely hot. Avoid touching this area, as contact with the heated surface could cause burns.

NOTICE

■ To prevent damage to the panoramic moon roof

• Before opening the panoramic moon roof, inspect the area around the roof opening and remove any foreign material, including stones, ice, or other debris that could interfere with movement or damage the mechanism.
• Do not strike the surface or edges of the panoramic moon roof with hard or sharp objects, as this may damage the glass or surrounding components.

■ After the vehicle has been washed or exposed to rain

• Before opening the panoramic moon roof, wipe away any water remaining on the roof surface. Otherwise, accumulated water may run through the opening and enter the Toyota RAV4 cabin when the roof is opened.
