Toyota Yaris: Reference value - Body dimensions - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Reference value

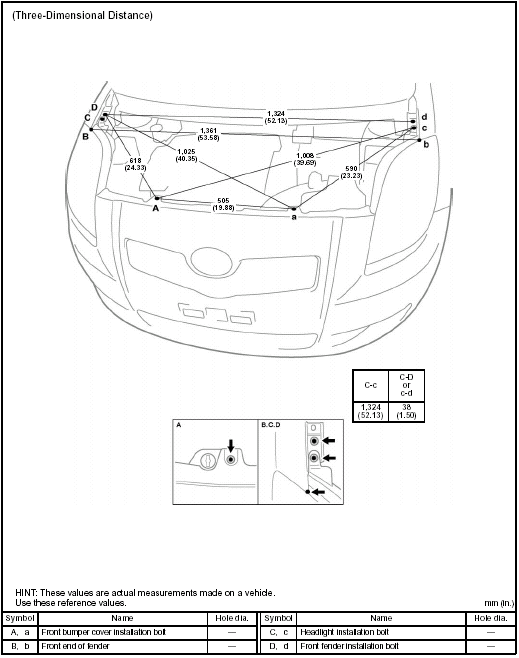

ENGINE COMPARTMENT Hatchboack

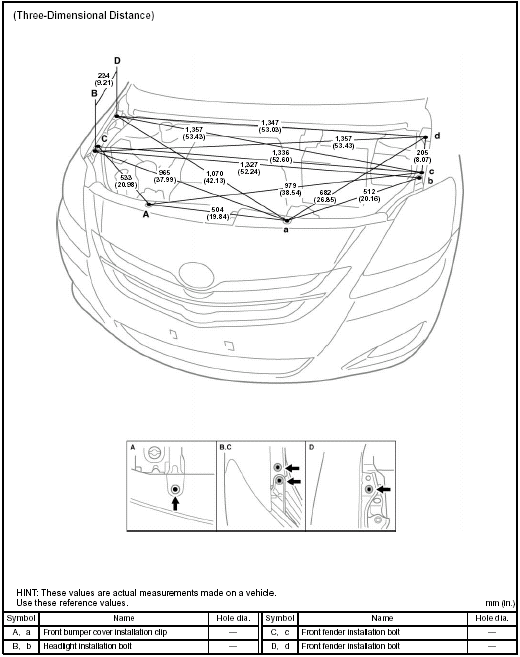

ENGINE COMPARTMENT Sedan

ENGINE COMPARTMENT Sedan

UNDER BODY

UNDER BODY

General information

    Body dimension drawings
    ENGINE COMPARTMENT Hatchback ENGINE COMPARTMENT Sedan BODY OPENING AREAS (Side View) Hatchback 3 Door BODY OPENING AREAS (Side View: Front) Hatchback 5 Door BODY OPENING AREAS (Side View: ...

    General information

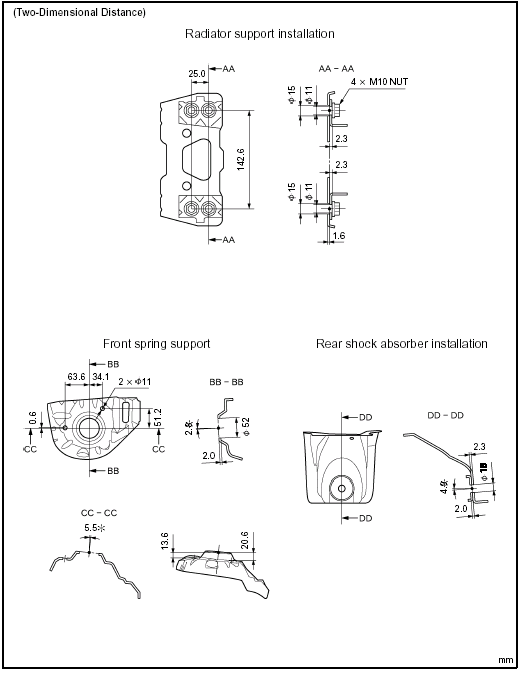

    1. BASIC DIMENSIONS (a) There are two types of dimensions in the diagram. (1) (Three-dimensional distance). Straight-line distance between the centers of two measuring points. (2) (Two-dimensi ...
