Toyota Yaris: Body dimension drawings - Body dimensions - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body dimension drawings

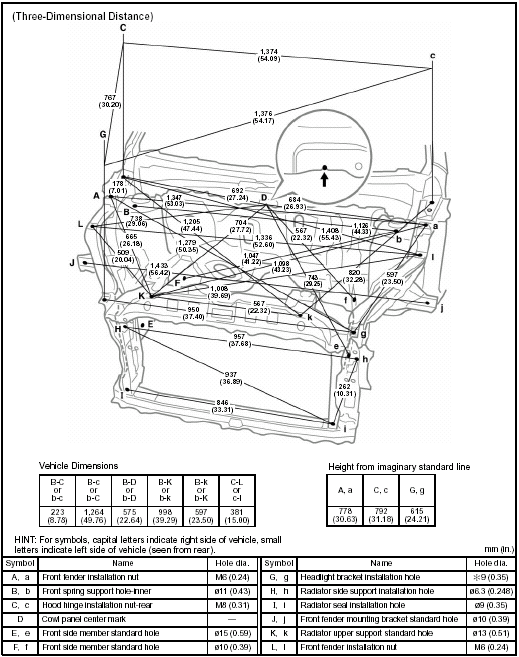

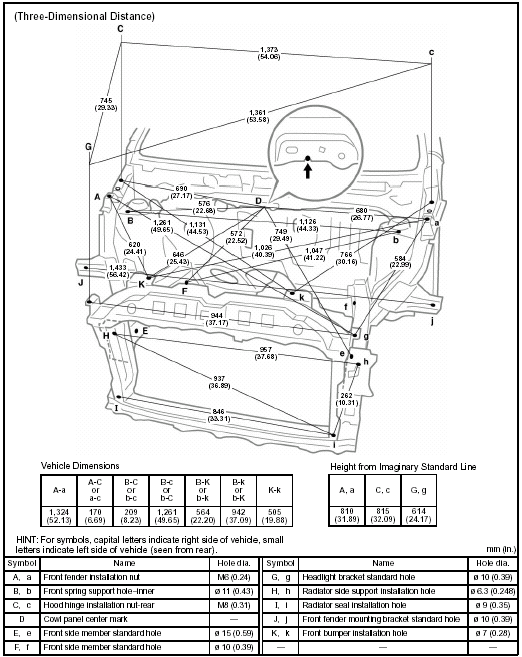

ENGINE COMPARTMENT Hatchback

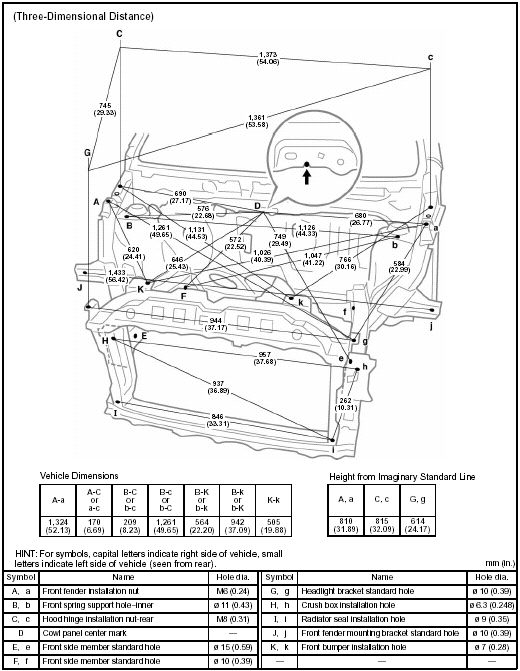

ENGINE COMPARTMENT Sedan

ENGINE COMPARTMENT Sedan

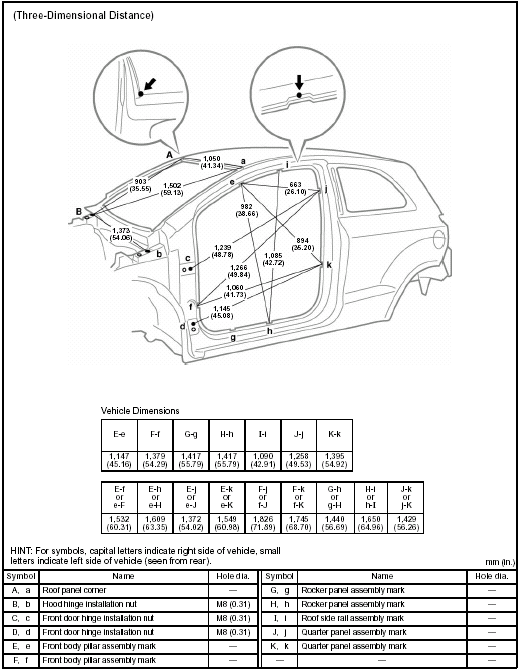

BODY OPENING AREAS (Side View) Hatchback 3 Door

BODY OPENING AREAS (Side View) Hatchback 3 Door

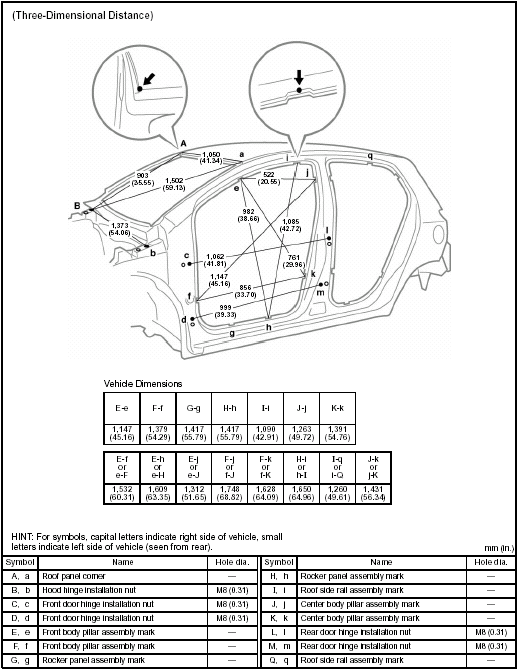

BODY OPENING AREAS (Side View: Front) Hatchback 5 Door

BODY OPENING AREAS (Side View: Front) Hatchback 5 Door

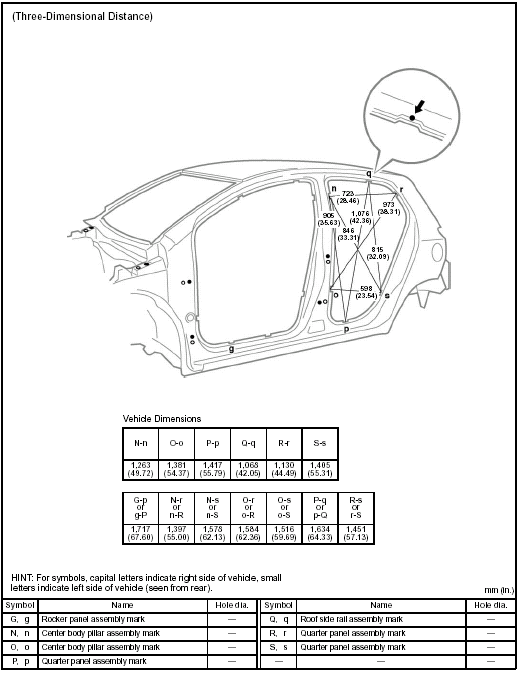

BODY OPENING AREAS (Side View: Rear) Hatchback 5 Door

BODY OPENING AREAS (Side View: Rear) Hatchback 5 Door

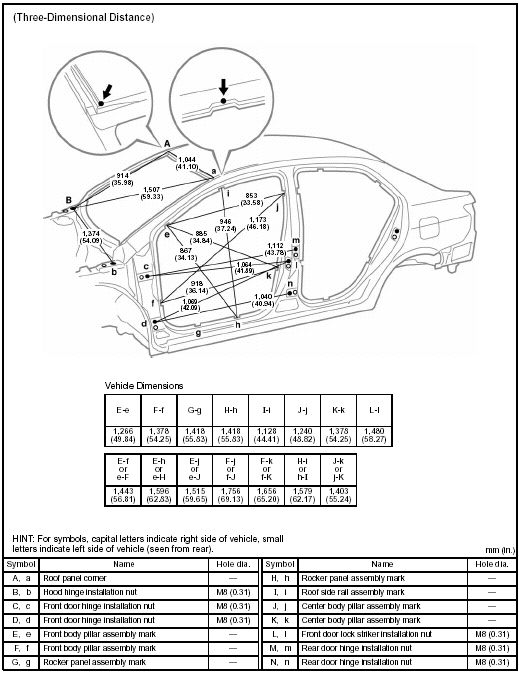

BODY OPENING AREAS (Side View: Front) Sedan

BODY OPENING AREAS (Side View: Front) Sedan

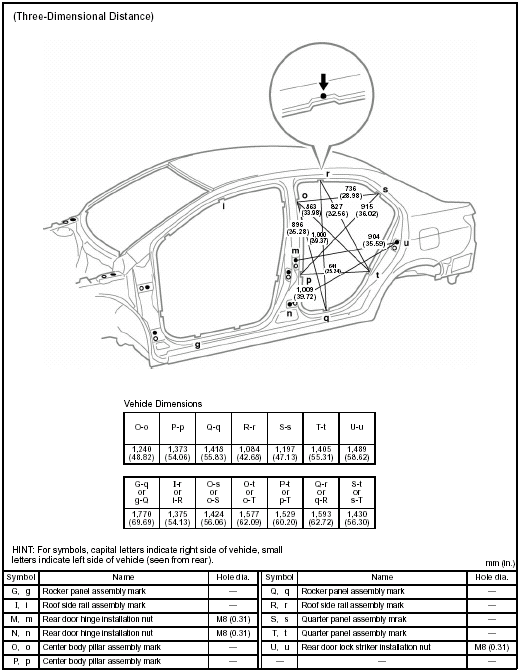

BODY OPENING AREAS (Side View: Rear) Sedan

BODY OPENING AREAS (Side View: Rear) Sedan

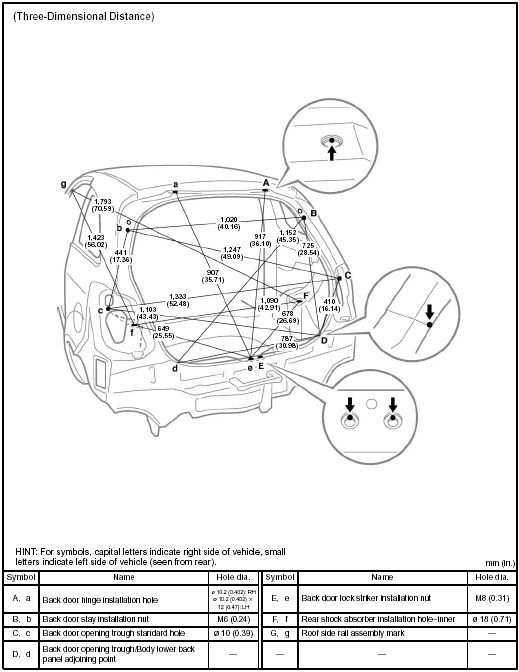

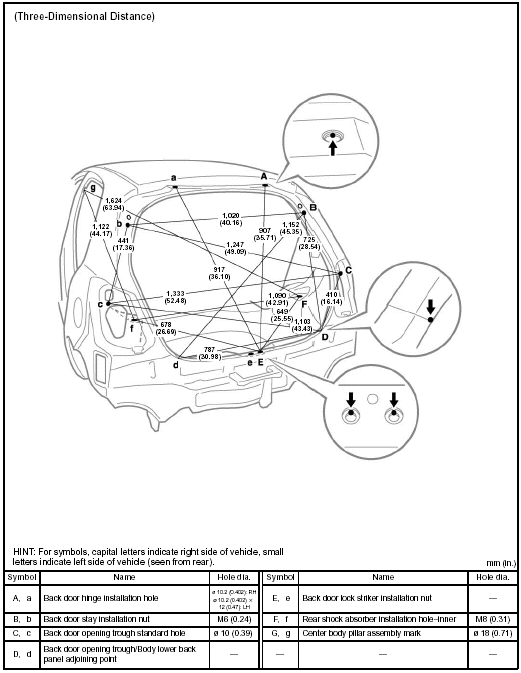

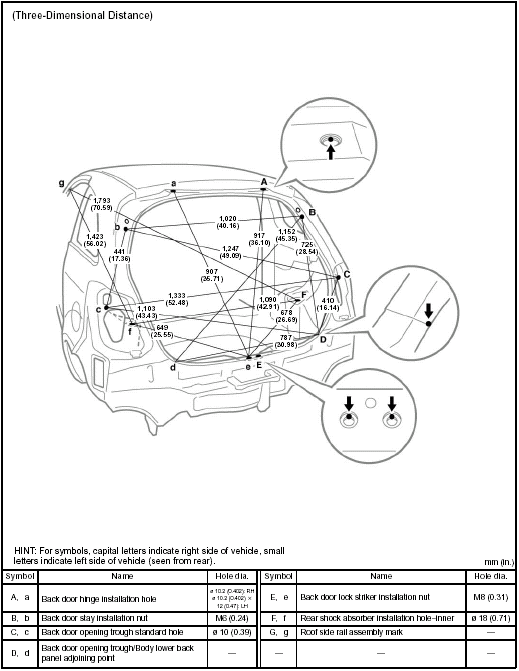

BODY OPENING AREAS (Rear View) Hatchback 5 Door

BODY OPENING AREAS (Rear View) Hatchback 5 Door

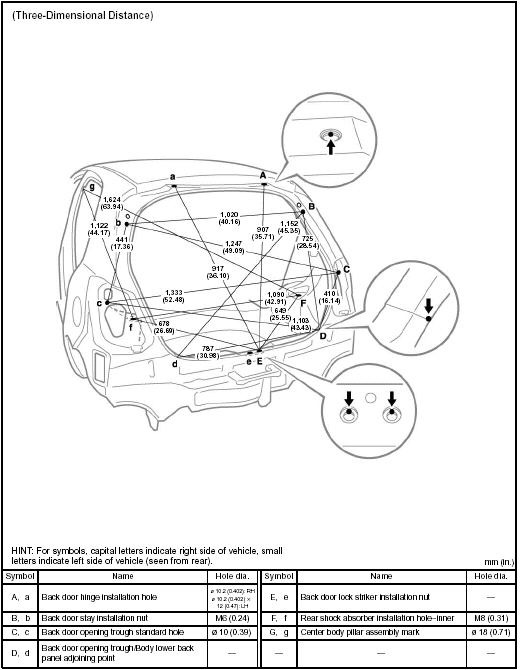

BODY OPENING AREAS (Rear View) Hatchback 3 Door

BODY OPENING AREAS (Rear View) Hatchback 3 Door

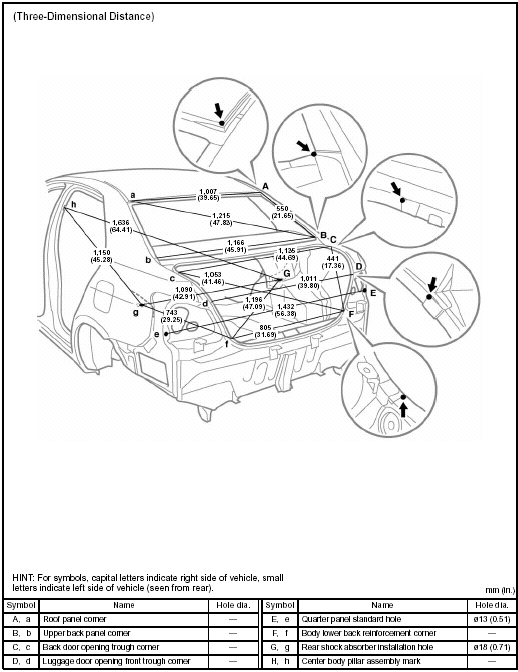

BODY OPENING AREAS (Rear View) Sedan

BODY OPENING AREAS (Rear View) Sedan

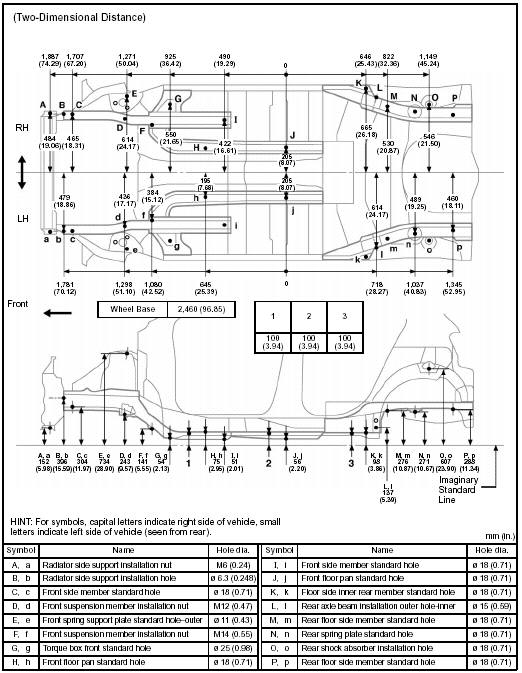

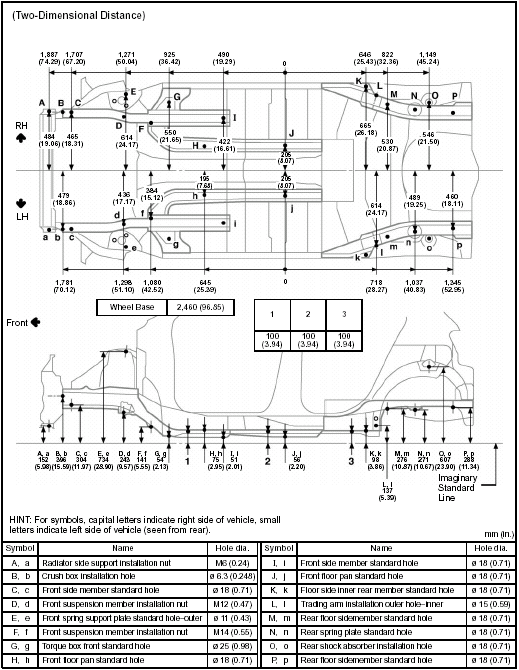

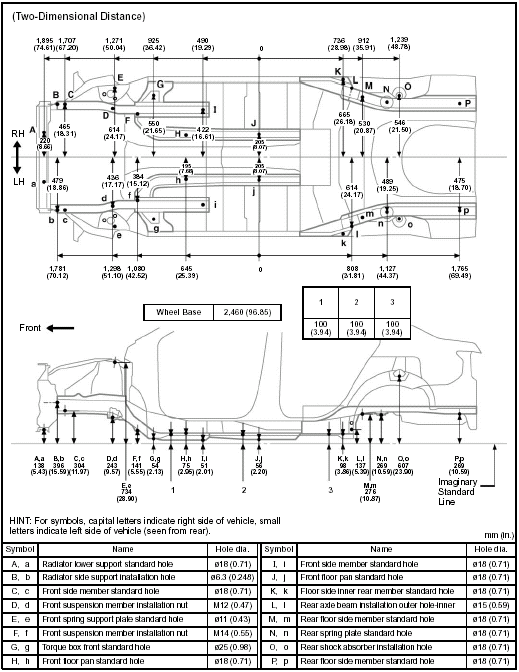

UNDER BODY Hatchback

UNDER BODY Hatchback

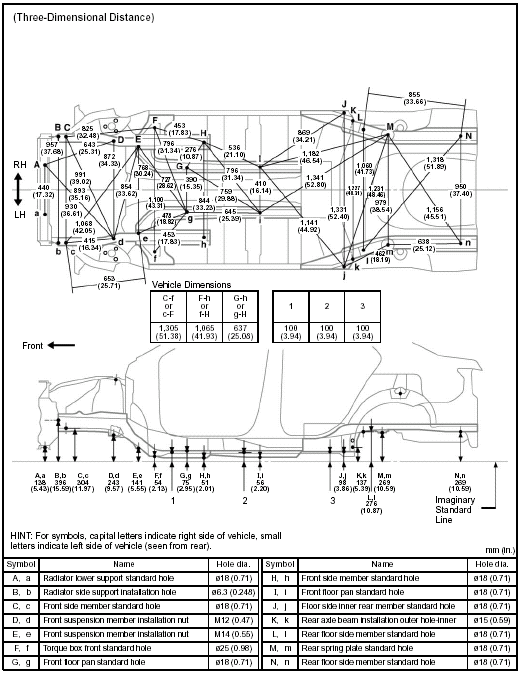

UNDER BODY Sedan

UNDER BODY Sedan

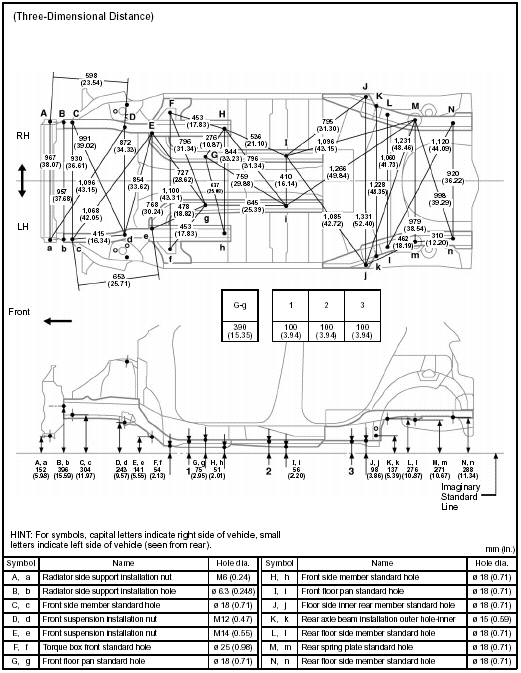

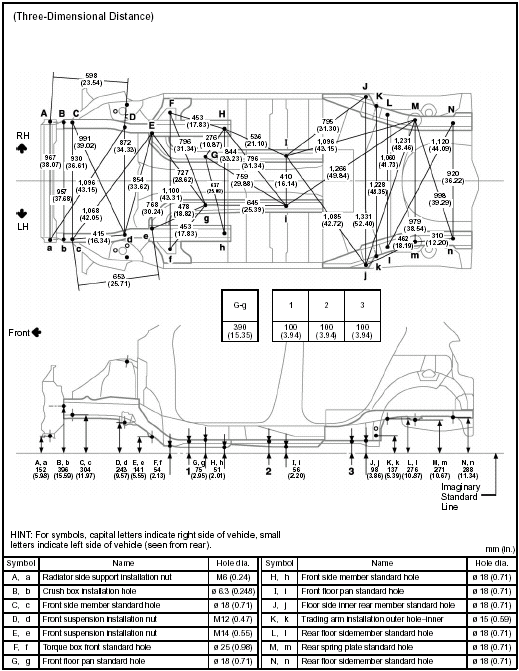

UNDER BODY Hatchback

UNDER BODY Hatchback

UNDER BODY Sedan

UNDER BODY Sedan

ENGINE COMPARTMENT

ENGINE COMPARTMENT

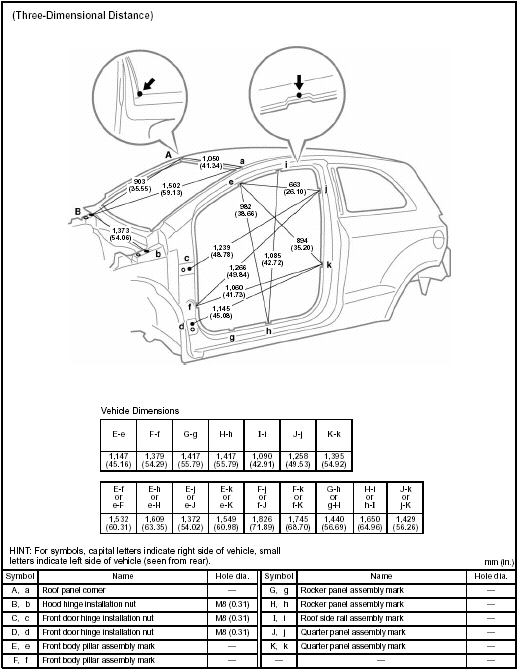

BODY OPENING AREAS (Side View) 3-Door

BODY OPENING AREAS (Side View) 3-Door

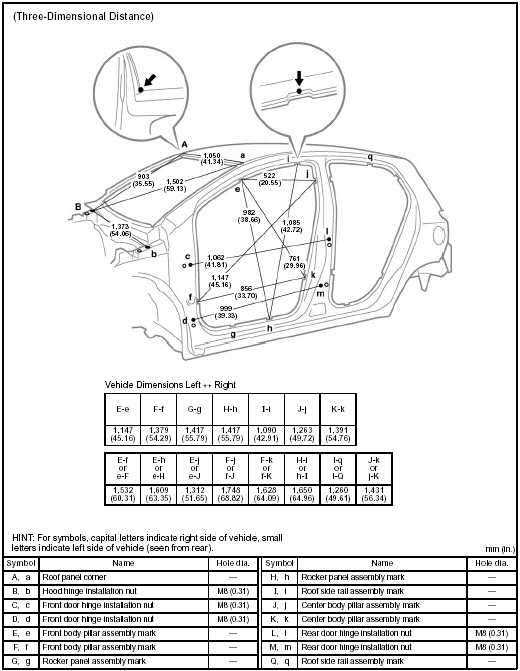

BODY OPENING AREAS (Side View: Front) 5-Door

BODY OPENING AREAS (Side View: Front) 5-Door

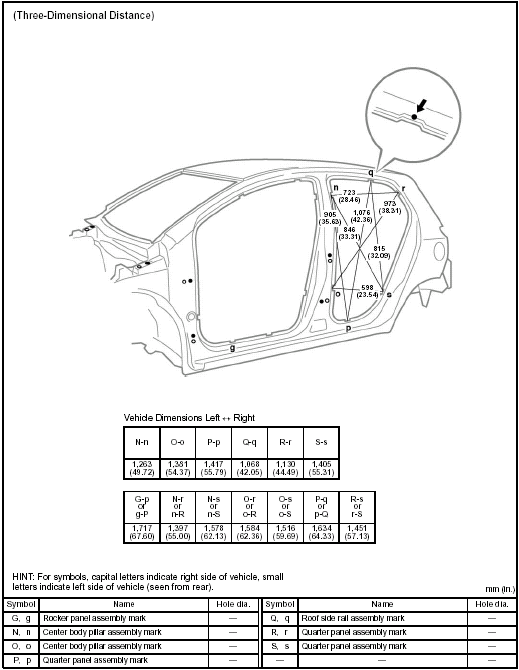

BODY OPENING AREAS (Side View: Rear) 5-Door

BODY OPENING AREAS (Side View: Rear) 5-Door

BODY OPENING AREAS (Rear View) 3-Door

BODY OPENING AREAS (Rear View) 3-Door

BODY OPENING AREAS (Rear View) 5-Door

BODY OPENING AREAS (Rear View) 5-Door

UNDER BODY

UNDER BODY

UNDER BODY

UNDER BODY

Reference value

    Body dimensions
    ...

    Reference value
    ENGINE COMPARTMENT Hatchboack ENGINE COMPARTMENT Sedan UNDER BODY ...
