Toyota Yaris: Head restraints - Adjustable components (seats, mirrors, steering wheel) - Before driving - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: Head restraints

Head restraints are provided for all seats.

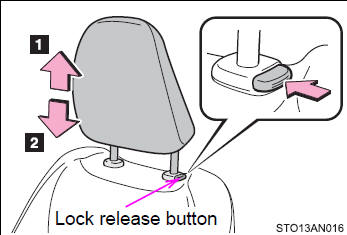

Up

Pull the head restraint up.Up

Pull the head restraint up.

Push the head restraint down while pushing the lock release button. Down

Push the head restraint down while pushing the lock release button.

■Removing the head restraints

Front and rear center head restraints

Pull the head restraint up while pressing the lock release button.

Pull the head restraint up while pressing the lock release button.

Rear outside head restraints

Pull the lock release knob and fold down the seatback until it reaches the position

Pull the lock release knob and fold down the seatback until it reaches the position where the head restraints can be removed.

Pull the head restraint up while pressing the lock release button.

Pull the head restraint up while pressing the lock release button.

■Installing the head restraints

Front and rear center head restraints

Align the head restraint with installation holes and push it down to the lock

Align the head restraint with installation holes and push it down to the lock position.

Press and hold the lock release button Lock when lowering the head restraint.

Rear outside head restraints

Pull the lock release knob and fold down the seatback until it reaches the position

Pull the lock release knob and fold down the seatback until it reaches the position where the head restraints can be installed.

Align the head restraint with installation holes and push it down to the lock

Align the head restraint with installation holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint.

■Adjusting the height of the head restraints

Make sure that the head restraints are adjusted so that the center of the head

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

■Adjusting the rear center seat head restraint

Always raise the head restraint one level from the stowed position when using.

CAUTION

■Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are locked in position.
●Do not drive with the head restraints removed.
