Toyota Yaris: If the vehicle battery is discharged - Steps to take in an emergency - When trouble arises - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: If the vehicle battery is discharged

The following procedures may be used to start the engine if the vehicle’s battery is discharged. You can also call your Toyota dealer or qualified repair shop.

If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.

Open the hood (→P. 238) Connect

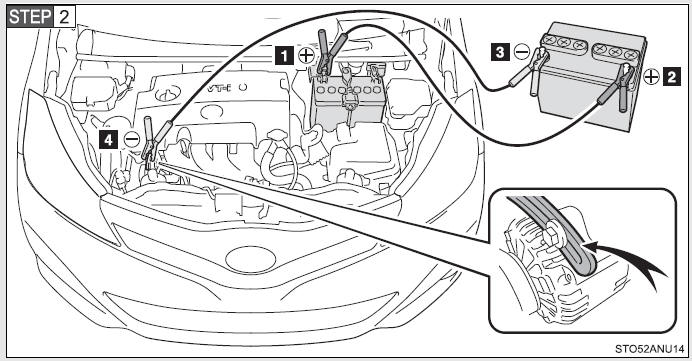

Connect the jumper cables according to the following procedure:

Connect the jumper cables according to the following procedure:

clamp to the positive (+) battery terminal on your vehicle. Connect a positive jumper cable clamp to the positive (+) battery terminal on your vehicle.

of the positive cable to the positive (+) battery terminal on the second vehicle. Connect the clamp on the other end of the positive cable to the positive (+) battery terminal on the second vehicle.

the negative (-) battery terminal on the second vehicle. Connect a negative cable clamp to the negative (-) battery terminal on the second vehicle.

of the negative cable to a solid, stationary, unpainted metallic point away from Connect the clamp at the other end of the negative cable to a solid, stationary, unpainted metallic point away from the battery and any moving parts, as shown in the illustration.

Start the engine of the second vehicle. Increase the engine speed slightly and

Start the engine of the second vehicle. Increase the engine speed slightly and maintain at that level for approximately 5 minutes to recharge the battery of your vehicle.

Maintain the engine speed of the second vehicle and start the engine of your

Maintain the engine speed of the second vehicle and start the engine of your vehicle by turning the engine switch to the “ON” position.

Once the vehicle’s engine has started, remove the jumper cables in the exact

Once the vehicle’s engine has started, remove the jumper cables in the exact reverse order from which they were connected.

Once the engine starts, have the vehicle inspected at your Toyota dealer as soon as possible.

■Starting the engine when the battery is discharged (vehicles with an automatic transmission)

The engine cannot be started by push-starting.

■To prevent battery discharge

●Turn off the headlights and the air conditioning system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low speed for an extended period, such as in heavy traffic.

■When the battery is removed or discharged (vehicles with an alarm system)

Make sure that the key is not inside the vehicle when recharging or replacing the battery. The key may be locked in the vehicle if the alarm is activated. (→P. 75)

■Charging the battery

The electricity stored in the battery will discharge gradually even when the vehicle is not in use, due to natural discharge and the draining effects of certain electrical appliances. If the vehicle is left for a long time, the battery may discharge, and the engine may be unable to start. (The battery recharges automatically during driving.)

CAUTION

■Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flammable gas that may be emitted from the battery:

●Make sure each jumper cable is connected to the correct terminal and that it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the + and - clamps of the jumper cables to come into contact with each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the battery.

■Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observe the following precautions when handling the battery:

●When working with the battery, always wear safety glasses and take care not to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately wash the affected area with water and seek medical attention. Place a wet sponge or cloth over the affected area until medical attention can be received.
●Always wash your hands after handling the battery support, terminals, and other battery-related parts.
●Do not allow children near the battery.

■To prevent damaging to the vehicle

Do not pull- or push-start the vehicle as the three-way catalytic converter may overheat and become a fire hazard.

NOTICE

■When handling jumper cables

When connecting the jumper cables, ensure that they do not become entangled in the cooling fans or belt.
