Toyota RAV4: Pictorial index - Instrument panel

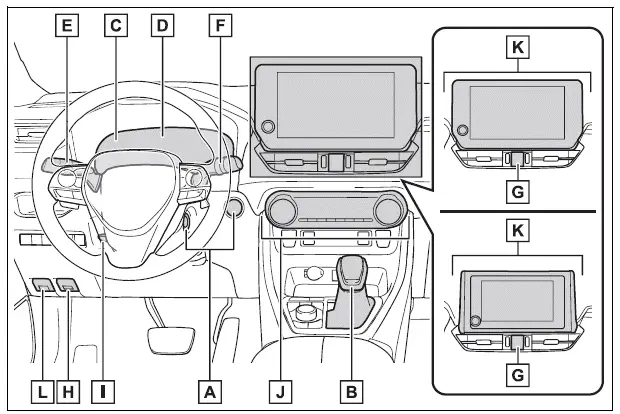

The instrument panel illustration shows the primary controls and displays positioned within the driver's reach. Their exact appearance or arrangement may vary according to the Toyota RAV4 grade and installed equipment.
- Engine switch
Starting the engine and changing the operating modes
Stopping the engine in an emergency
Following the appropriate steps when the engine will not start
Understanding related warning messages*1 - Shift lever
Changing the selected shift position
Following the required precautions when towing the vehicle
Responding when the shift lever cannot be moved - Meters
Reading the meters and adjusting the instrument panel illumination
Identifying warning lights and indicator lights
Taking the appropriate action when a warning light comes on - Multi-information display
Viewing vehicle and driving information on the display
Reviewing warning messages when they are shown - Turn signal lever
Headlight switch
Operating the headlights, parking lights, tail lights, license plate lights, and daytime running lights
Operating the fog lights*1 - Windshield wiper and washer switch
Rear window wiper and washer switch
Operating the front and rear wipers and washers
Adding washer fluid when the level is low
Understanding related warning messages - Emergency flasher switch
Activating all turn signal lights simultaneously to warn other road users - Hood lock release lever
Releasing the primary hood lock from inside the cabin - Tilt and telescopic steering lock release lever
Adjusting the steering wheel position and securing it after adjustment - Air conditioning system
Operating the cabin heating, cooling, and airflow controls
Using the rear window defogger - Audio system*2
Accessing the vehicle's multimedia and audio functions - Fuel filler door opener lever
Releasing the fuel filler door before refueling
*1: If equipped
*2: Refer to "MULTIMEDIA OWNER'S MANUAL".
