Toyota Yaris: Rear floor pan (ASSY): Hatchback - BODY PANEL REPLACEMENT - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Rear floor pan (ASSY): Hatchback

REPLACEMENT

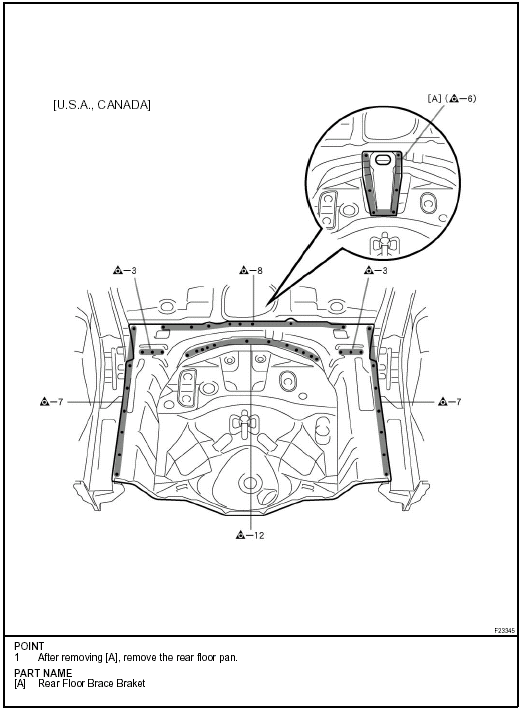

With the body lower back panel and floor side rail front panel removed.

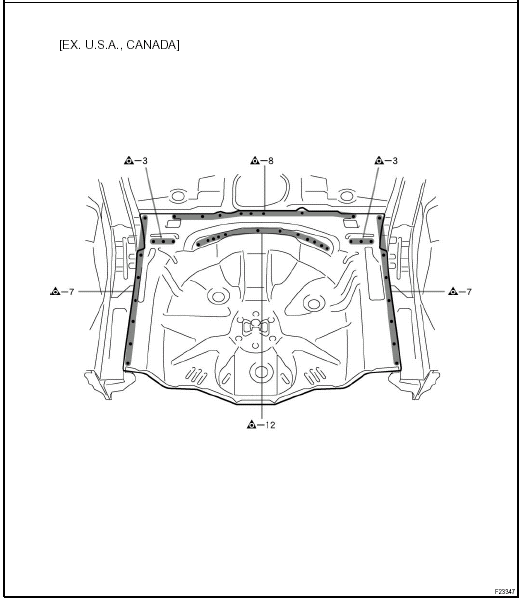

With the body lower back panel and floor side rail front panel removed.

REMOVAL

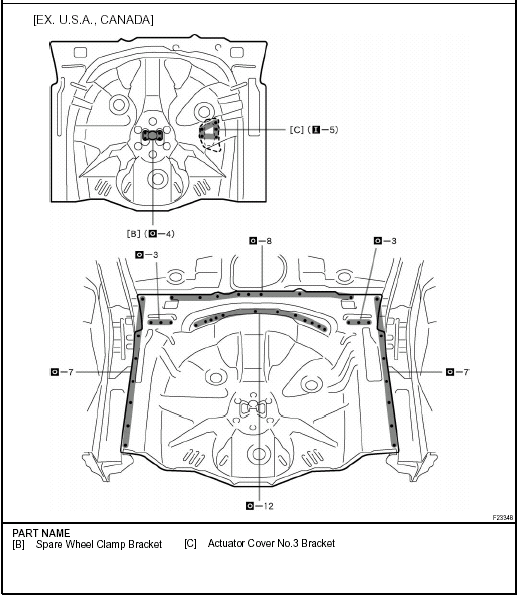

INSTALLATION

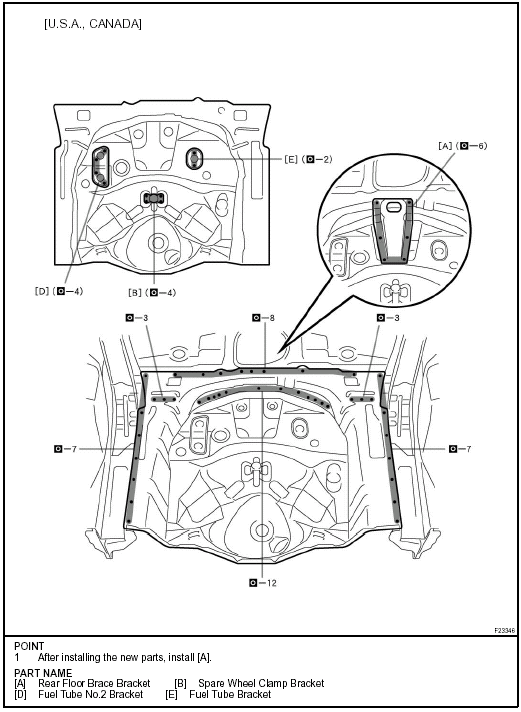

INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

After welding, apply polyurethane foam to the corresponding parts.

After welding, apply body sealer and undercoating to the corresponding parts.

After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

Rear floor pan extension (ASSY): Sedan

    Rear floor side panel extension (ASSY): Hatchback
    REPLACEMENT With the quarter panel and body lower back panel removed. REMOVAL     INSTALLATION Temporarily install the new parts and measure each part of the new parts in accord ...

    Rear floor pan extension (ASSY): Sedan
    REPLACEMENT With the body lower back panel removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagra ...
