Toyota Yaris: Power outlet

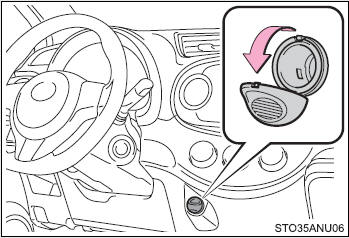

The power outlet can be used for 12 V accessories that run on less than 10 A.
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
Outside temperature display
The temperature display shows temperatures within the ranges of -40°F (-40°C)
and 122°F (50°C).
Except Canada
Canada
■The outside temperature is displayed when
The engine switch is ...
Assist grips
An assist grip installed on the ceiling can be used to support your body while
sitting on the seat.
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle o ...
