Toyota Yaris: Outside rear view mirrors - Adjustable components (seats, mirrors, steering wheel) - Before driving - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: Outside rear view mirrors

Mirror angle can be adjusted.

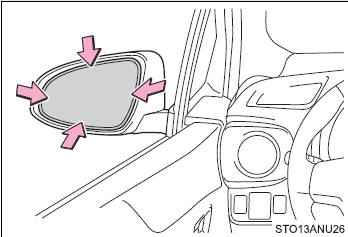

Vehicles with a manually adjustable type

Adjust the mirror up, down, in or out by pushing the mirror surface.

Adjust the mirror up, down, in or out by pushing the mirror surface.

Vehicles with a power-adjustable type

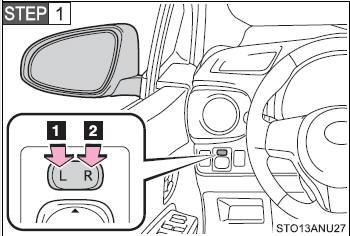

To select a mirror to adjust, press the switch.

To select a mirror to adjust, press the switch.

RightLeft

Right

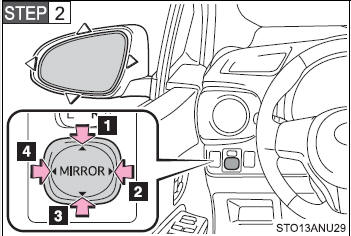

To adjust the mirror, press the switch.

To adjust the mirror, press the switch.

RightUp

DownRight

LeftDown

Folding the mirrorsLeft

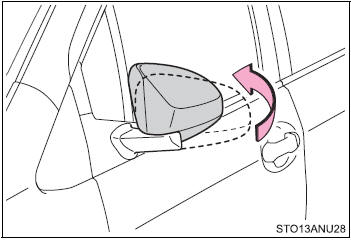

Folding the mirrors

Push the mirror back in the direction of the vehicle’s rear.

Push the mirror back in the direction of the vehicle’s rear.

■Mirror angle can be adjusted when (vehicles with a power-adjustable type)

The engine switch is in the “ACC” or “ON” position.

■When the mirrors are fogged up (vehicles with an outside rear view mirror defoggers)

Turn on the mirror defoggers to defog the mirrors. (→P. 199)

CAUTION

■When driving the vehicle

Observe the following precautions while driving. Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly adjusted before driving.

■When a mirror is moving (vehicles with a power-adjustable type)

To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.

■When the mirror defoggers are operating (vehicles with an outside rear view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
