Toyota Yaris: Foamed material application areas

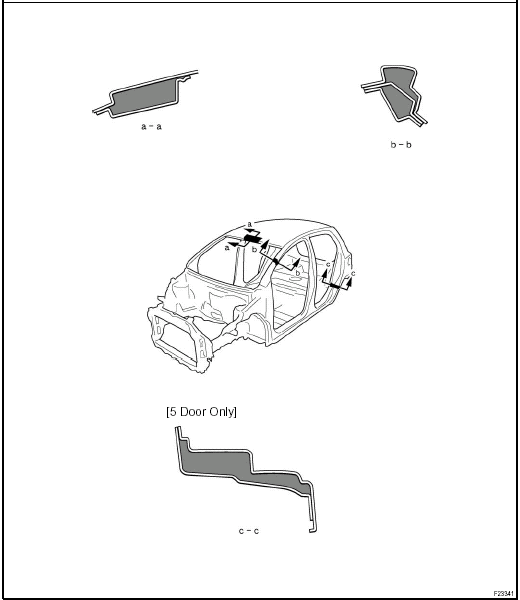

The sections shown in the figure below are filled with foamed material to provide noise insulation.
Refill with foamed materials after repairing these sections and their surrounding sections.
HINT: 1) Use the service holes located on the reverse side of the body panel to refill foamed materials.
2) Follow manufacturer directions when handling the foamed material.
Body panel under coating areas
HINT: 1) First wipe off any dirt, grease or oil with a rag soaked in silicone
remover.
2) Cover the surrounding areas with masking paper to avoid coating unnecessary
areas. If other areas are acc ...
Body panel anti-rust agent (wax) application areas
HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the
doors and hoods.
2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire
application area ...
