Toyota Yaris: Foamed material application areas - Paint coating - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Foamed material application areas

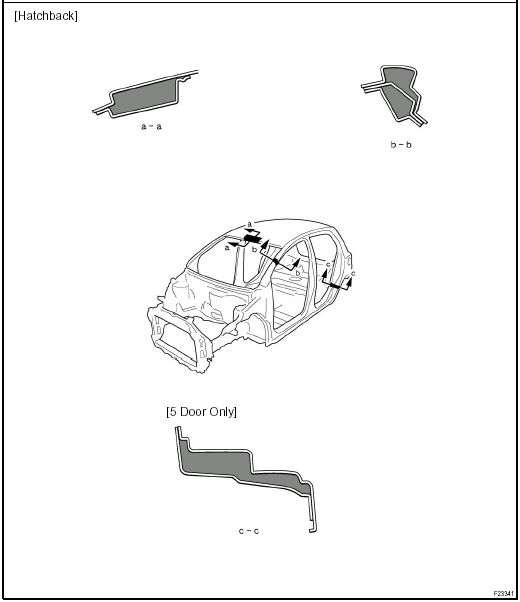

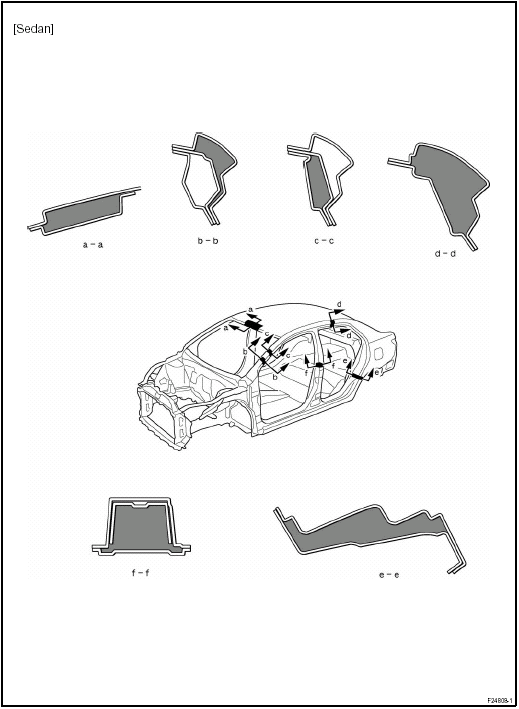

The sections shown in the figure below are filled with foamed material to provide noise insulation.

Refill with foamed materials after repairing these sections and their surrounding sections.

HINT: 1) Use the service holes located on the reverse side of the body panel to refill foamed materials.

2) Follow manufacturer directions when handling the foamed material.

Body panel anti-rust agent (wax) application areas

    Body panel under coating areas
    HINT: 1) First wipe off any dirt, grease or oil with a rag soaked in silicone remover. 2) Cover the surrounding areas with masking paper to avoid coating unnecessary areas. If other areas are acc ...

    Body panel anti-rust agent (wax) application areas
    HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the doors and hoods. 2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire application area ...
