Toyota Yaris: Turn signal lever

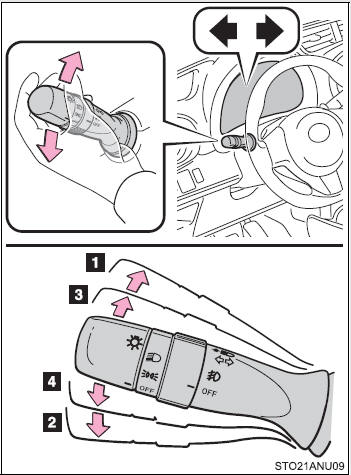

The turn signal lever can be used to show the following intentions of the driver:
Right turn
Left turn
Lane change to the right (push and
hold the lever partway)
The right hand signals will flash until you release the lever.
Lane change to the left (push and
hold the lever partway)
The left hand signals will flash until you release the lever.
■Turn signals can be operated when
The engine switch is in the “ON” position.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
