Toyota Yaris: Sun visors

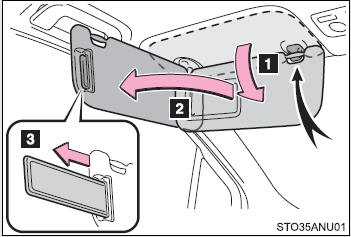

To set the visor in the forward
position, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the side.
To use the side extender, place
the visor in the side position, then slide it backward. (if equipped)
Vanity mirrors
Slide the cover to open. ...
