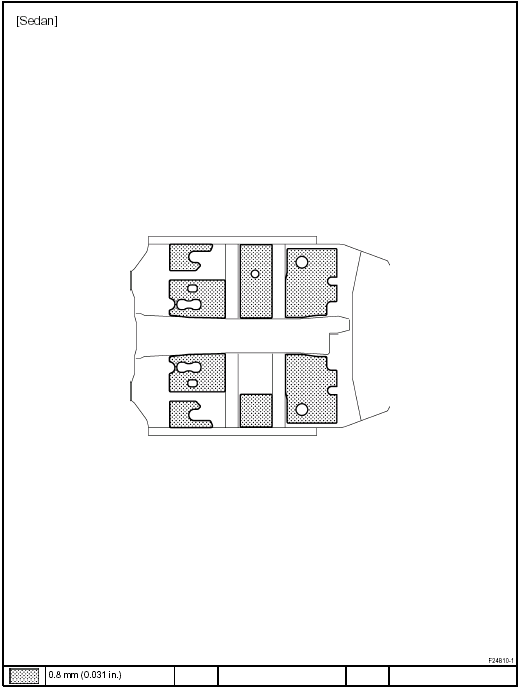

Toyota Yaris: Silencer sheet installation areas
Second generation (XP90; 2005–2010) / Toyota Yaris XP90 2005–2010 Collision Repair Manual / Paint coating / Silencer sheet installation areas

Body panel anti-rust agent (wax) application areas
HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the
doors and hoods.
2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire
application area ...
Body panel anti-chipping paint application areas
HINT: 1) Anti-chipping paint should be applied to some areas before the second
coat and to other areas after the top coat.
2) Wipe off the paint immediately with a rag soaked in silicone remover if ...
