Toyota Yaris: Rear window wiper and washer
The wiper operation is selected by moving the lever as follows:

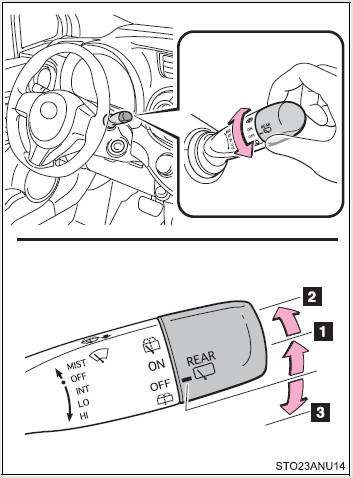

Vehicles without intermittent rear wiper (Type A)
Normal window wiper operation
Washer/wiper dual operation
Washer operation
Vehicles without intermittent rear wiper (Type B)
Normal window wiper operation
Washer/wiper dual operation
Washer operation

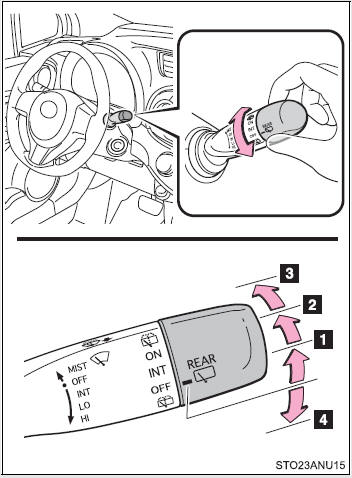

Vehicles with intermittent rear wiper (Type A)
Intermittent window wiper operation
Normal window wiper operation
Washer/wiper dual operation
Washer/wiper dual operation
The wiper will automatically operate a couple of time after the wiper squirts.

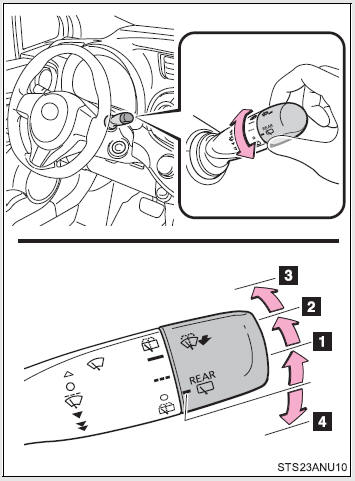

Vehicles with intermittent rear wiper (Type B)
Intermittent window wiper operation
Normal window wiper operation
Washer/wiper dual operation
Washer/wiper dual operation
The wiper will automatically operate a couple of time after the wiper squirts.
■The rear window wiper and washer can be operated when
The engine switch is in the “ON” position.
■If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wipers, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Windshield wiper and washer
The wiper operation is selected by moving the lever as follows:
Type A
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
...
