Toyota Yaris: Quarter wheel housing outer panel (ASSY): Sedan
REPLACEMENT
With the quarter panel removed.

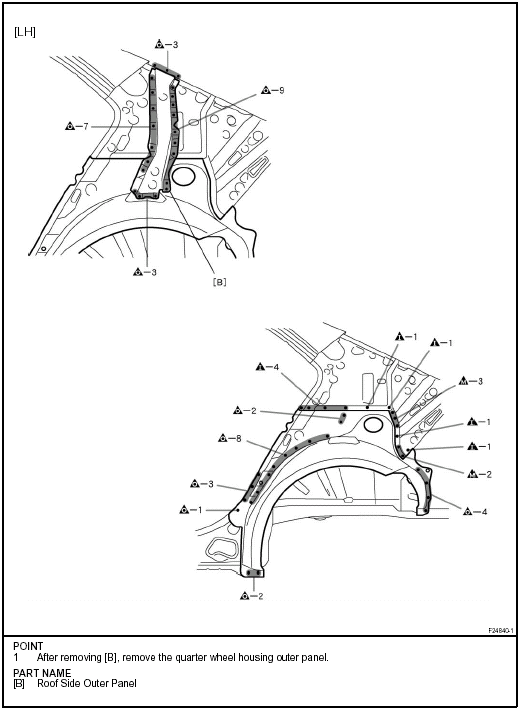

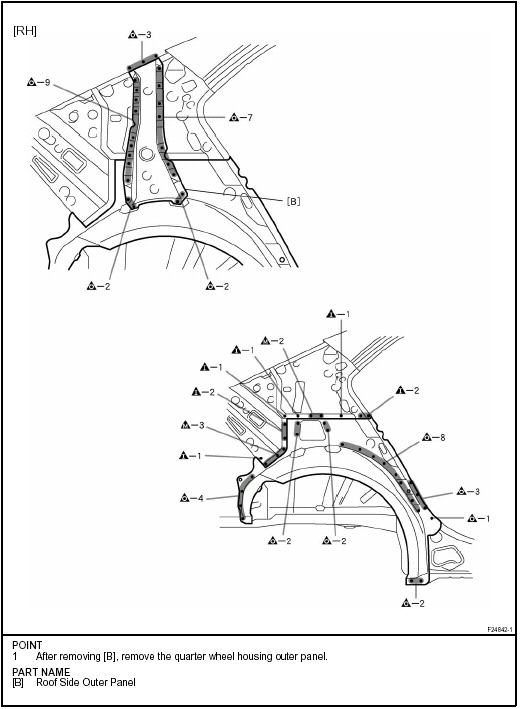

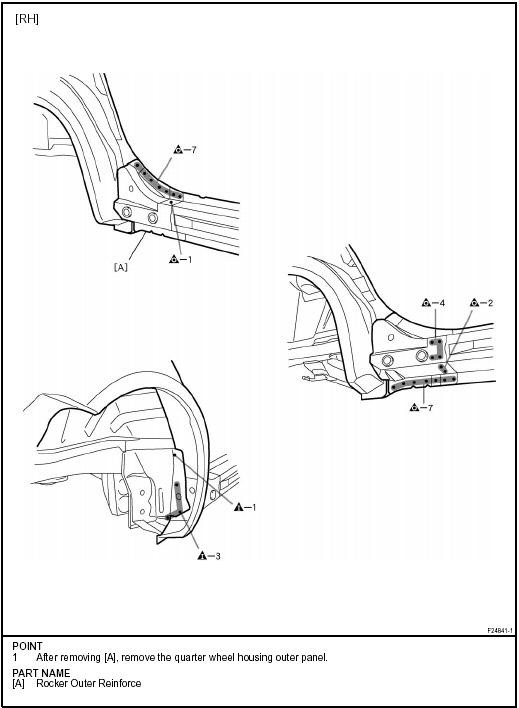

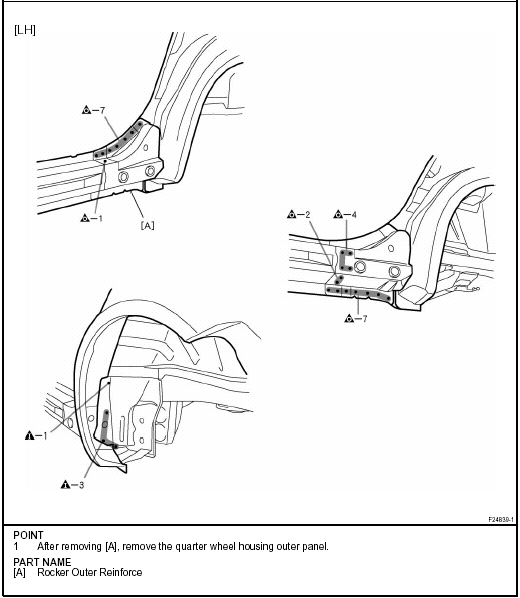

REMOVAL

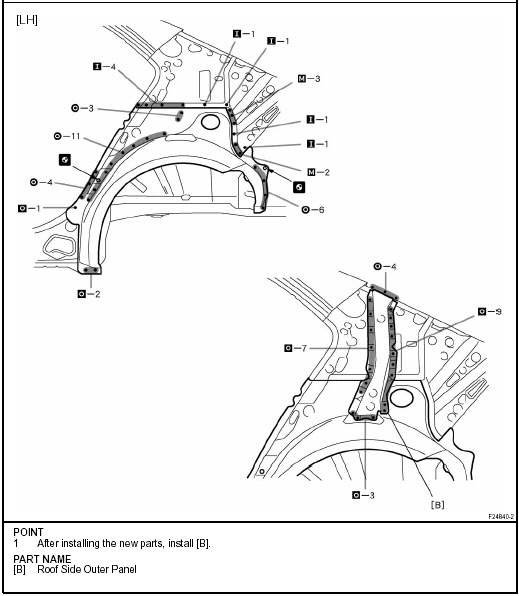

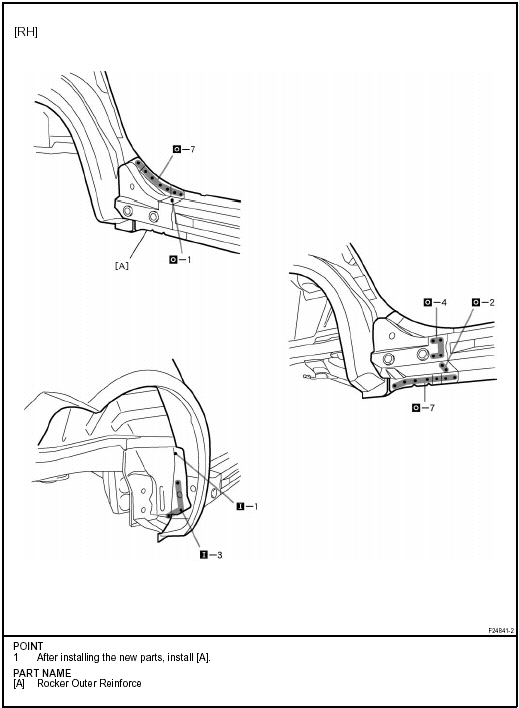

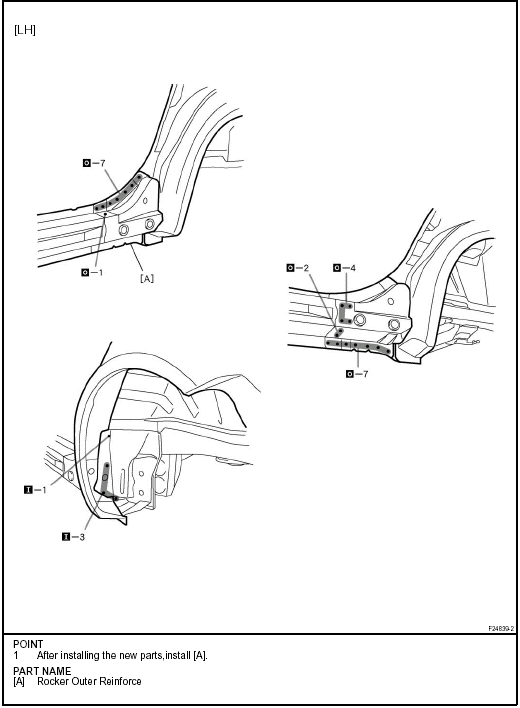

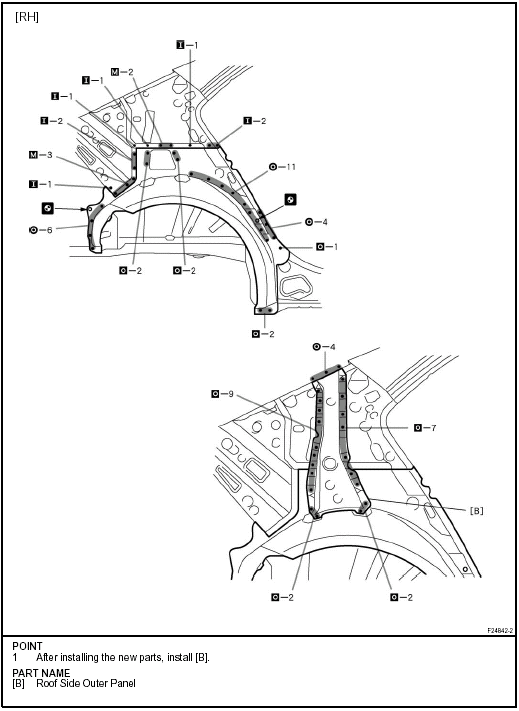

INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
After welding, apply polyurethane foam to the corresponding parts.
After welding, apply body sealer and undercoating to the corresponding parts.
After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
Adhesive Application Area Work Procedure
NOTE.
This vehicle has areas on the Quarter Panel and Quarter Wheel Housing Outer Panel
that are joined together only with adhesive. It is necessary to conduct the correct
repair procedures for h ...
