Toyota Yaris: Quarter wheel housing outer panel (ASSY): Hatchback - Body panel replacement - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Quarter wheel housing outer panel (ASSY): Hatchback

REPLACEMENT

With the quarter panel removed.

With the quarter panel removed.

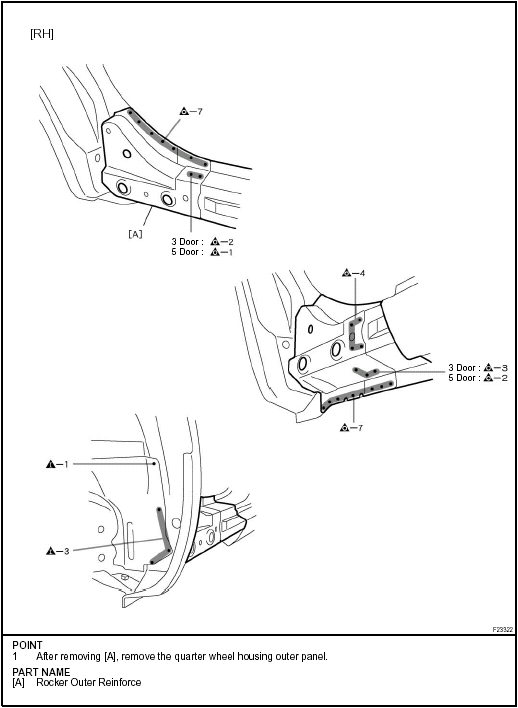

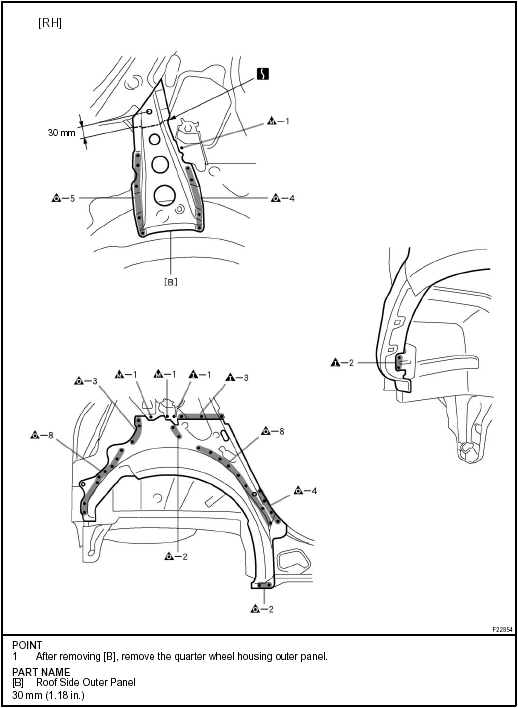

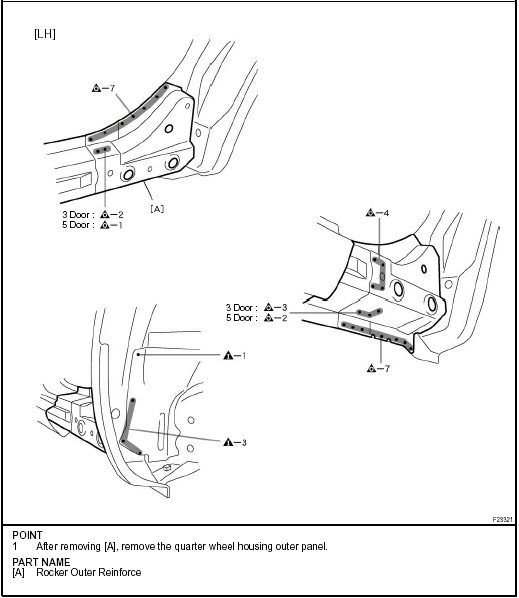

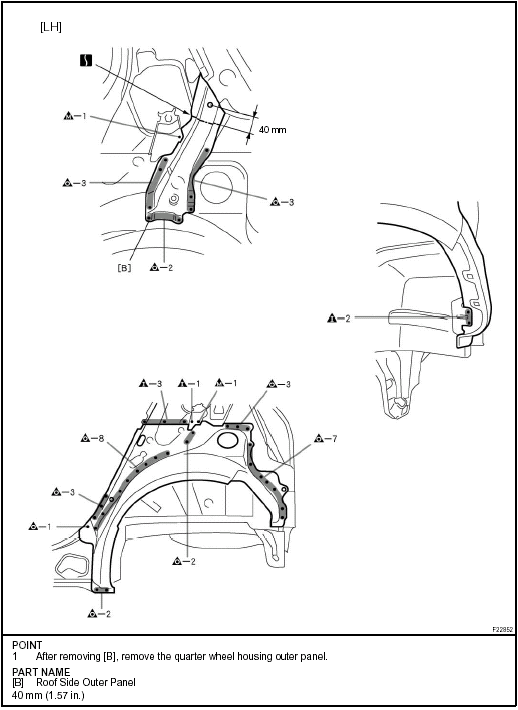

REMOVAL

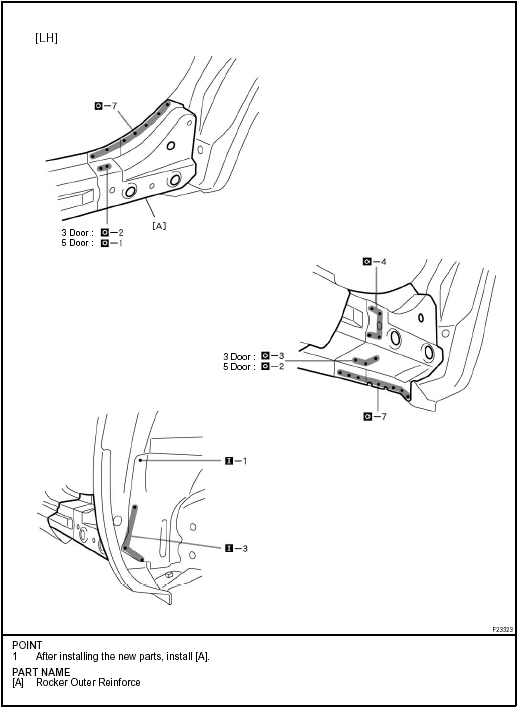

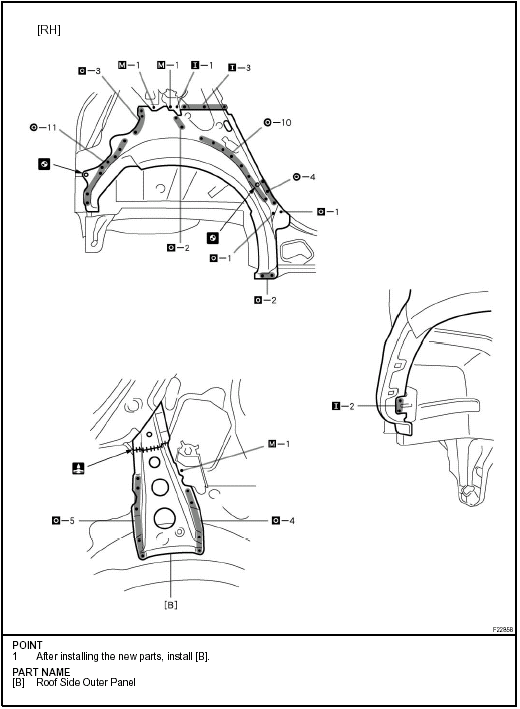

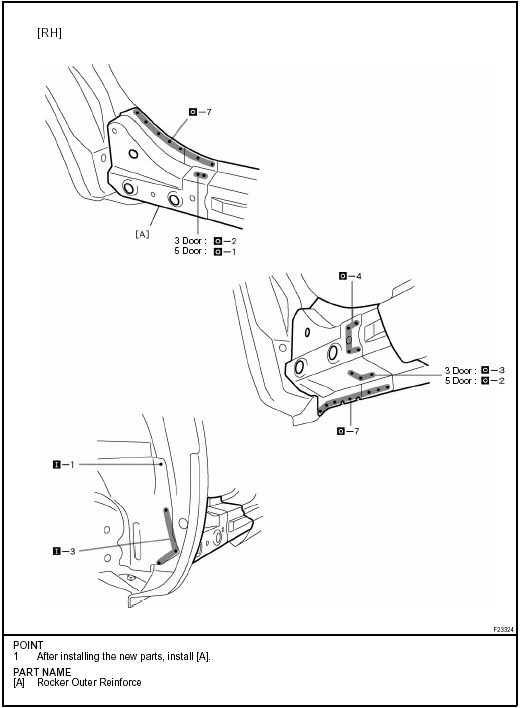

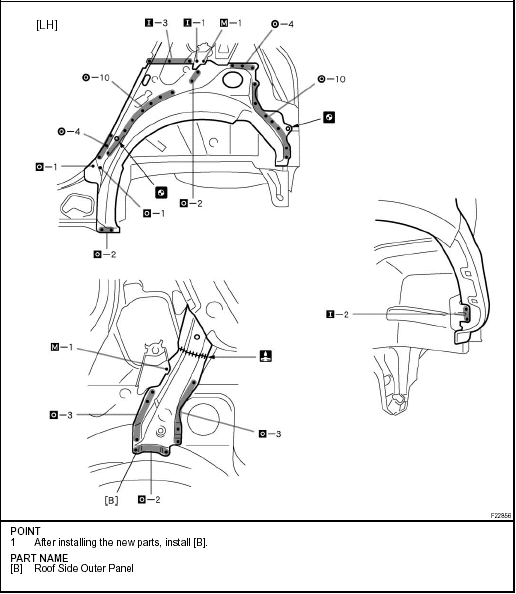

INSTALLATION

INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

After welding, apply the polyurethane foam to the corresponding parts.

After welding, apply body sealer and under-coating to the corresponding parts.

After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.

Quarter panel (CUT): Hatchback 5 Door

    Rocker outer panel (CUT): Sedan
    REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspe ...

    Quarter panel (CUT): Hatchback 5 Door
    REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Ins ...

    See also:

    Foamed material application areas
    The sections shown in the figure below are filled with foamed material to provide noise insulation. Refill with foamed materials after repairing these sections and their surrounding sections. HI ...

    General information
    1. BASIC DIMENSIONS (a) There are two types of dimensions in the diagram. (1) (Three-dimensional distance). Straight-line distance between the centers of two measuring points. (2) (Two-dimensi ...

    Rear door outer panel (CUT): Sedan Ex. U.S.A., Canada
    REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspe ...
