Toyota Yaris: Outside temperature display

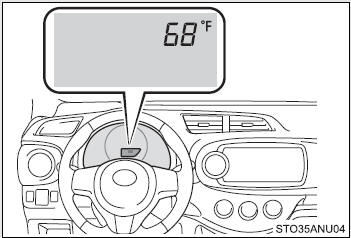

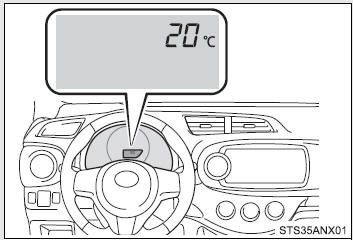

The temperature display shows temperatures within the ranges of -40°F (-40°C) and 122°F (50°C).
Except Canada
Canada
■The outside temperature is displayed when
The engine switch is in the “ON” position.
■Display
In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 16 mph [25 km/h])
●When the outside temperature has changed suddenly (at the entrance/ exit of a garage,
tunnel, etc.)
■When “− −” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
Clock
Adjusts the hours
Adjusts the minutes
■The clock is displayed when
The engine switch is in the “ON” position.
■When disconnecting and reconnecting battery terminals
The clock ...
Power outlet
The power outlet can be used for 12 V accessories that run on less than 10
A.
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■ ...
