Toyota Yaris: Outside rear view mirrors
Mirror angle can be adjusted.
Vehicles with a manually adjustable type

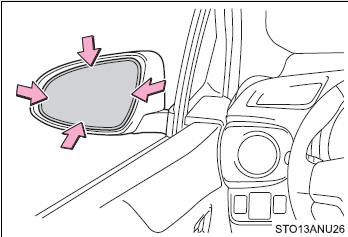

Adjust the mirror up, down, in or out by pushing the mirror surface.
Vehicles with a power-adjustable type

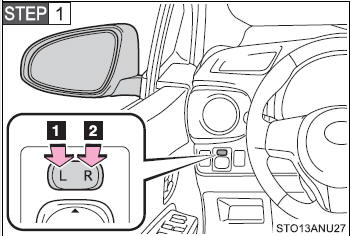

To select a mirror to adjust, press the switch.
Left
Right

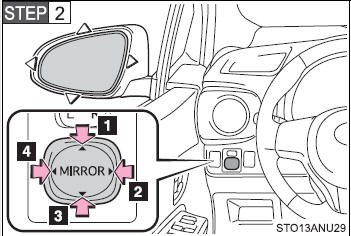

To adjust the mirror, press the switch.
Up
Right
Down
Left

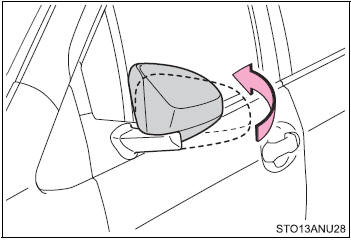

Folding the mirrors
Push the mirror back in the direction of the vehicle’s rear.
■Mirror angle can be adjusted when (vehicles with a power-adjustable type)
The engine switch is in the “ACC” or “ON” position.
■When the mirrors are fogged up (vehicles with an outside rear view mirror defoggers)
Turn on the mirror defoggers to defog the mirrors. (→P. 199)
CAUTION
■When driving the vehicle
Observe the following precautions while driving. Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly adjusted before driving.
■When a mirror is moving (vehicles with a power-adjustable type)
To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.
■When the mirror defoggers are operating (vehicles with an outside rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
