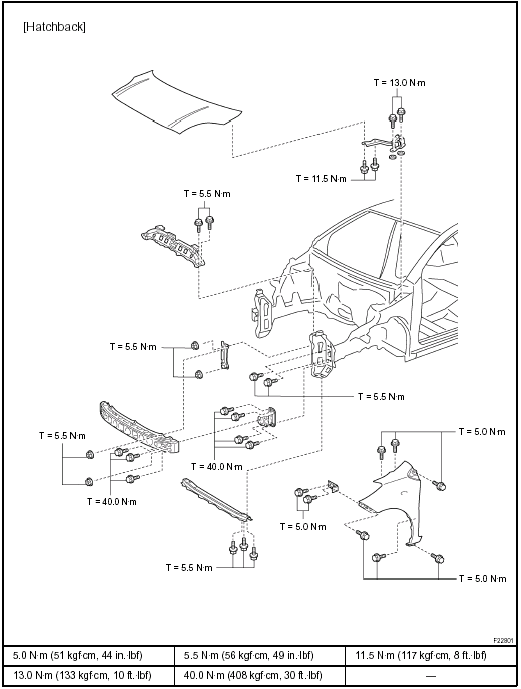

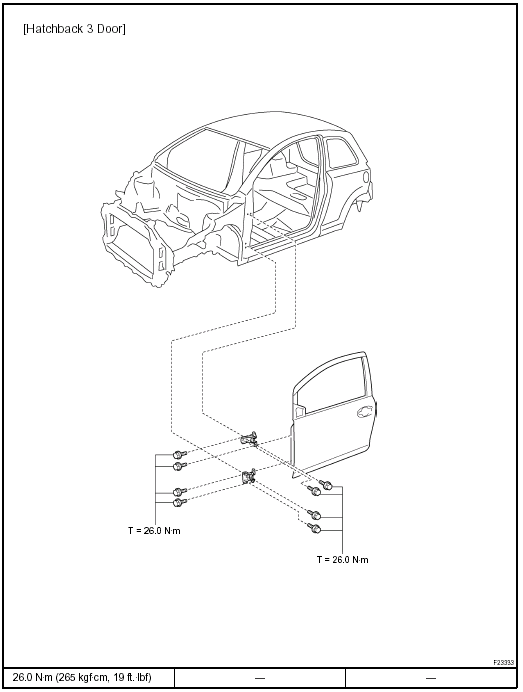

Rear floor sidemember (CUT): Hatchback

REPLACEMENT With the body lower back panel removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagra ...

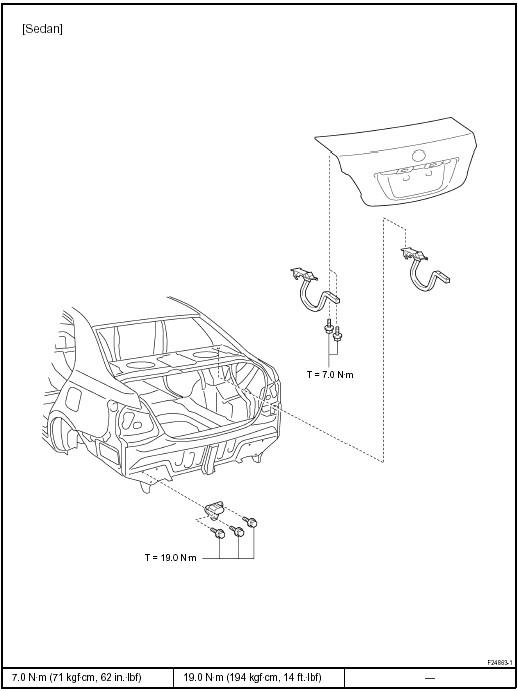

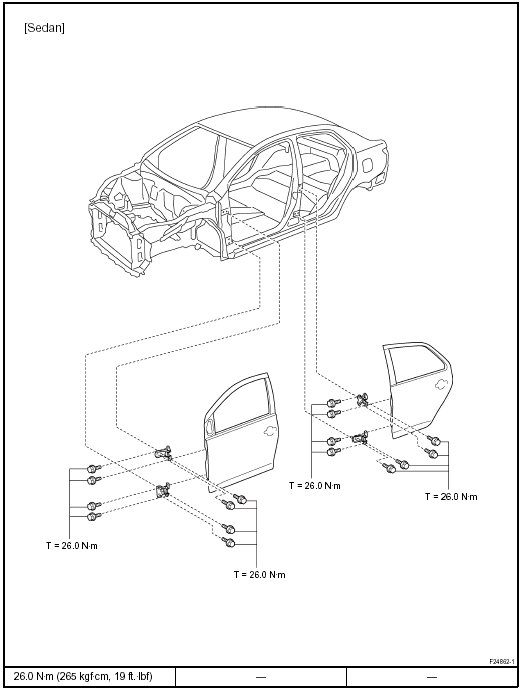

Rear floor sidemember (ASSY): Sedan

REPLACEMENT With the rear floor pan removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See ...

See also:

General information
1. BASIC DIMENSIONS (a) There are two types of dimensions in the diagram. (1) (Three-dimensional distance). Straight-line distance between the centers of two measuring points. (2) (Two-dimensi ...

How to use this manual
1. BODY PANEL REPLACEMENT IN THIS MANUAL 2. SYMBOLS The following symbols are used in the welding diagrams in section BP of this manual to indicate cutting areas and the types of weld required ...

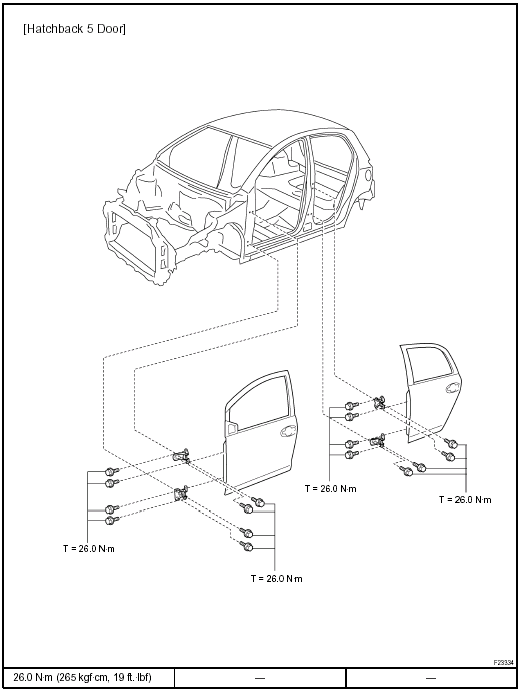

Rear door outer panel (CUT): 5-Door
REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspe ...
