Toyota Yaris: Multi-information display
The multi-information display presents the driver with a variety of driving-related data.
● Odometer (→P. 141)
● Trip meter (→P. 141)
● Trip information (→P. 141)
Displays driving range, fuel consumption and other cruising- related information.
● Eco Driving Indicator Light customization (vehicles with an automatic transmission) (→P. 143)

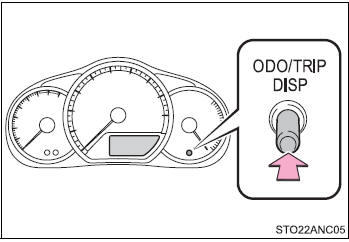

Changing the display
Items displayed can be switched by pressing the display change button.
Displays the total distance the vehicle has been driven.
■ Trip meter
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances independently.
Pressing and holding the display change button will reset the trip meter that is currently displayed.
■ Instantaneous fuel consumption
Displays instantaneous fuel consumption.
■ Average fuel consumption
Displays the average fuel consumption since the function was reset.
• The function can be reset by pressing and holding the display change button
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.

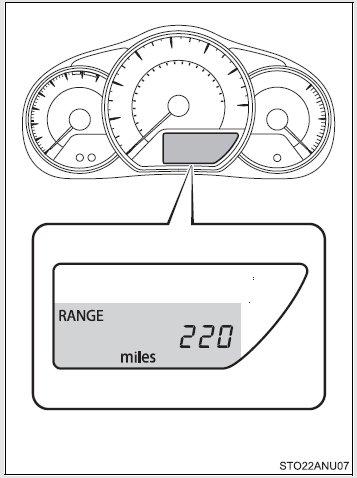

■ Driving range
Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When adding fuel, turn the engine switch to the “LOCK” position. In case fuel is added without turning the engine switch to the “LOCK” position, the display may not be updated.
■ Average vehicle speed
Displays the average vehicle speed since the engine was started or the function was reset.
Eco Driving Indicator Light customization (vehicles with an automatic transmission)
Eco Driving Indicator Light can be activated or deactivated by pressing the display change button when the Eco Driving Indicator Light customization display is displayed.
To change the Eco Driving Indicator Light customization display, display the odometer and press and hold the button until the display changes.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption
●Average vehicle speed
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.
