Toyota Yaris: Key information - Before driving - Toyota Yaris XP130 2010–2024 Owner's ManualToyota Yaris: Key information

Keys

The following keys are provided with the vehicle.

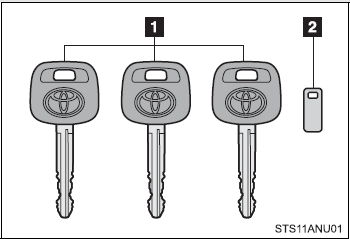

Vehicles without engine immobilizer system (type A)

Master keys

Key number plate Master keys

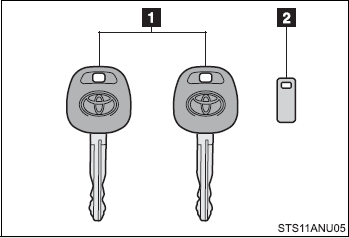

Vehicles without engine immobilizer system (type B) Key number plate

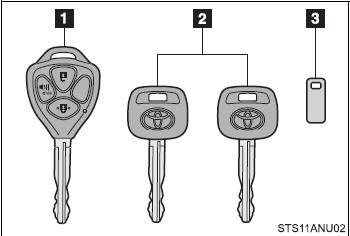

Vehicles without engine immobilizer system (type B)

Master key (with a wireless remote

control function) Master key (with a wireless remote control function)

Operating the wireless remote control function (→P. 31)

control function)Key number plate Master keys (without a wireless remote control function)Key number plate

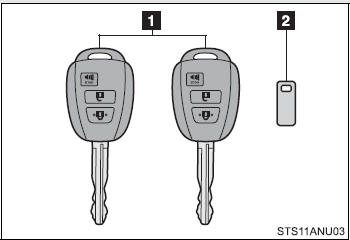

Vehicles with engine immobilizer system (type A)Key number plate

Vehicles with engine immobilizer system (type A)

Master keys

Key number plate Master keys

Vehicles with engine immobilizer system (type B) Key number plate

Vehicles with engine immobilizer system (type B)

Master keys

Operating the wireless remote control function (→P. 31) Master keys

Operating the wireless remote control function (→P. 31)

Vehicles with engine immobilizer system (type C)Key number plate

Vehicles with engine immobilizer system (type C)

Master keys

Operating the wireless remote control function (→P. 31)Master keys

Operating the wireless remote control function (→P. 31)

■Key number plate Key number plate

■Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 329)

■When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

NOTICE

■To prevent key damage

Observe the following:

●Do not subject the keys to strong shocks, expose them to high temperatures by placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any material that blocks electromagnetic waves to the key surface.
●Do not disassemble the wireless remote control key.
