Toyota Yaris: If your vehicle has to be stopped in an emergency - Steps to take in an emergency - When trouble arises - Toyota Yaris XP130 2010–2026 Owner's ManualToyota Yaris: If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure:

Steadily step on the brake pedal with both feet and firmly depress it.

Steadily step on the brake pedal with both feet and firmly depress it.

Проектная документация - проект оздс.

Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.

Shift the shift lever to N.

Shift the shift lever to N.

If the shift lever is shifted to N

After slowing down, stop the vehicle in a safe place by the road.

After slowing down, stop the vehicle in a safe place by the road.

Stop the engine.

Stop the engine.

If the shift lever cannot be shifted to N

Keep depressing the brake pedal with both feet to reduce vehicle speed as much

Keep depressing the brake pedal with both feet to reduce vehicle speed as much as possible.

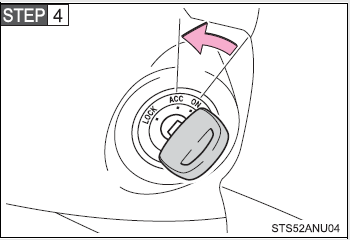

Stop the engine by turning the engine switch to the “ACC” position.

Stop the engine by turning the engine switch to the “ACC” position.

Stop the vehicle in a safe place by the road.

Stop the vehicle in a safe place by the road.

CAUTION

■If the engine has to be turned off while driving

●Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possible before turning off the engine.
●Never attempt to remove the key, as doing so will lock the steering wheel.
