Toyota Yaris: How to use this manual - Introduction - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: How to use this manual

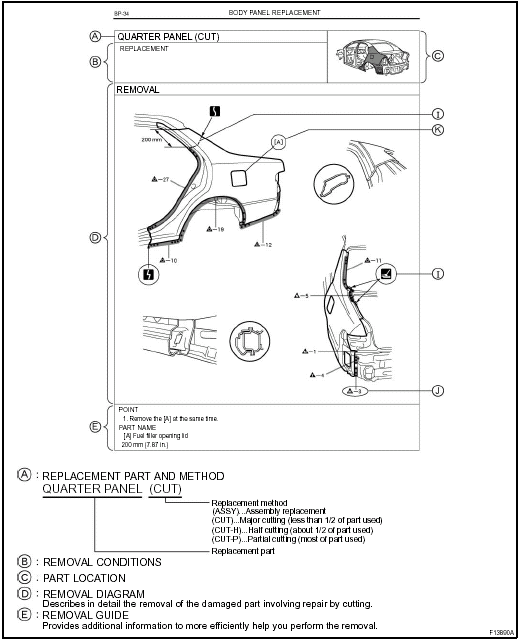

1. BODY PANEL REPLACEMENT IN THIS MANUAL

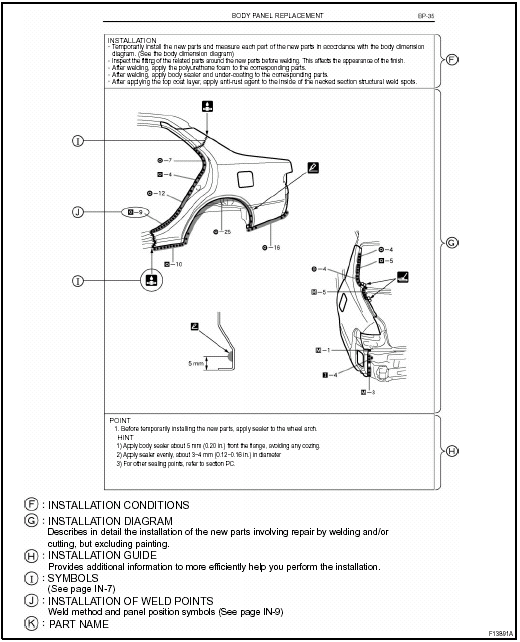

2. SYMBOLS

2. SYMBOLS

The following symbols are used in the welding diagrams in section BP of this manual to indicate cutting areas and the types of weld required.

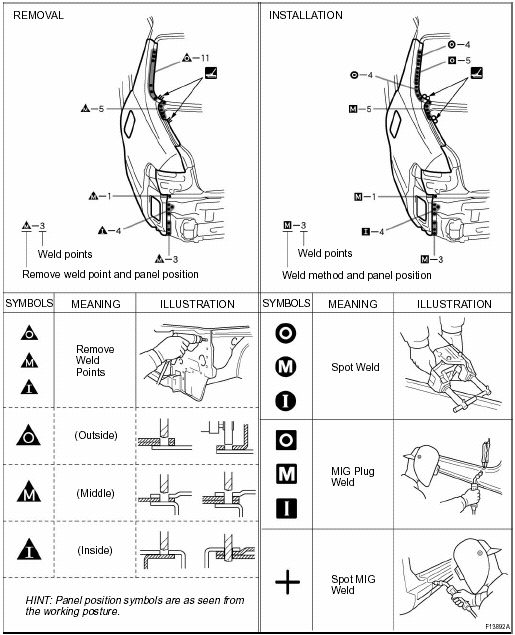

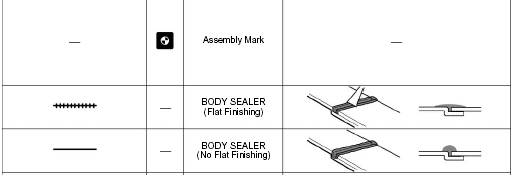

3. ILLUSTRATION OF WELD POINT SYMBOLS

3. ILLUSTRATION OF WELD POINT SYMBOLS

EXAMPLE:

Proper and efficient work procedures

    General repair instructions
    1. WORK PRECAUTIONS (a) VEHICLE PROTECTION. (1) When welding, protect the painted surfaces, windows, seats and carpet with heat resistant, fireproof covers. (b) SAFETY. (1) Never stand in a ...

    Proper and efficient work procedures
    1. REMOVAL (a) PRE-REMOVAL MEASURING. (1) Before removal or cutting operations, take measurements in accordance with the dimensions diagram. Always use a puller to straighten a damaged body or f ...

    See also:

    Rear door outer panel (CUT): Sedan U.S.A., Canada
    REPLACEMENT REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspe ...
