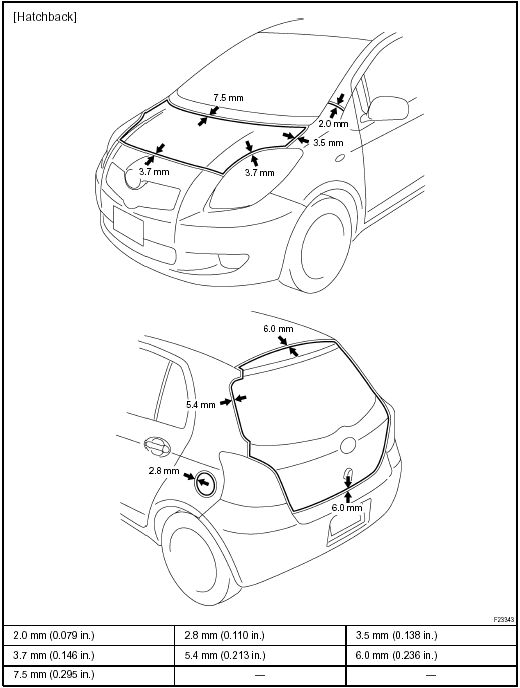

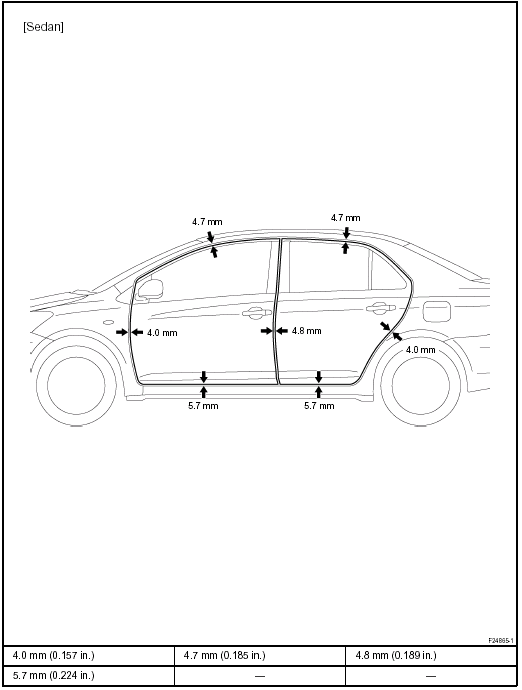

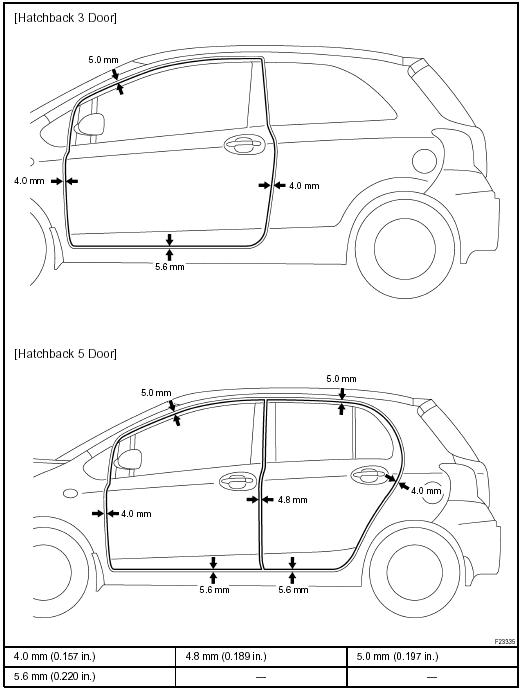

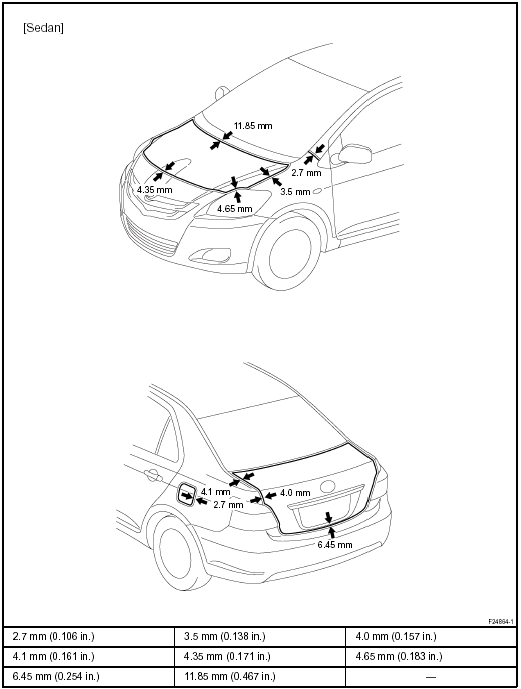

Toyota Yaris: Fit standards - BODY PANEL REPLACEMENT - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Fit standards

Front sidemember reinforcement (CUT-P)

    Rear floor sidemember (ASSY): Sedan
    REPLACEMENT With the rear floor pan removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See ...

    Front sidemember reinforcement (CUT-P)
    REPLACEMENT With the radiator support removed. REMOVAL INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. ...
