Toyota Yaris: Cup holders
Front
Rear
The cup holder is designed for holding cups or drink-cans securely.

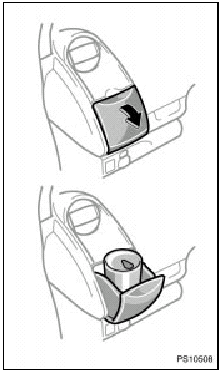

Front cup holders—To use the cup holder, pull it out.
Keep the cup holder closed when it is not in use.
CAUTION.
Do not place anything else other than cups or drink-cans in the cup holder, as such items may be thrown about and possibly injure people in the vehicle during sudden braking or in an accident.
Auxiliary boxes
To use the auxiliary boxes, open the lids as shown in the following illustrations.
CAUTION.
To reduce the chance of injury in case of an accident or a sudden stop, always
keep the auxiliary box ...
Bottle holders
Front doors
Rear doors (5-door models only)
Rear side (3-door models only)
The bottle holders are designed to hold bottles securely.
CAUTION.
Do not attempt to use the holder for an ...
