Toyota Yaris: Cowl top side upper panel (ASSY): Sedan
REPLACEMENT
With the cowl top side panel removed.
REMOVAL

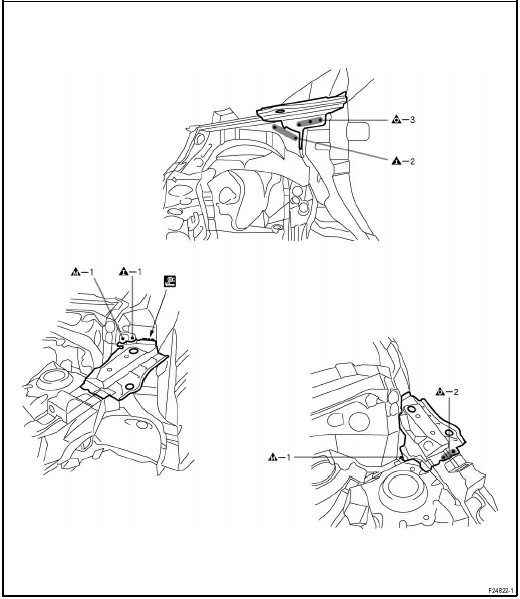

INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram) Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.
After welding, apply polyurethane foam to the corresponding parts.
After welding, apply body sealer and undercoating to the corresponding parts.
After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
Cowl top side upper panel (ASSY): Hatchback
REPLACEMENT
With the cowl top side panel removed.
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. ...

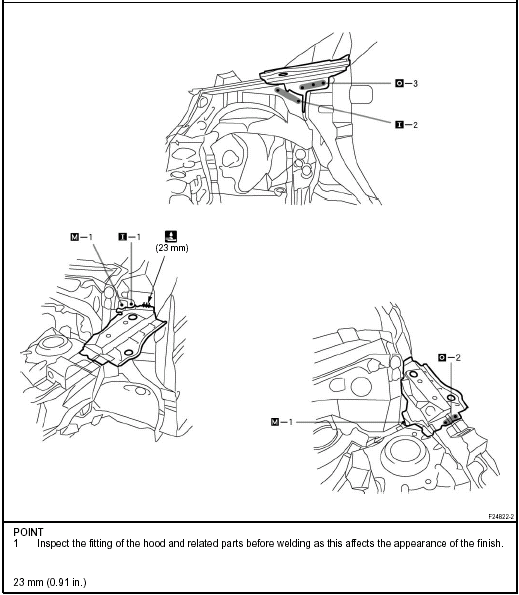

Center body pillar (CUT): Hatchback 5 Door
REPLACEMENT
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. (See the body dimension diagram) Inspe ...
See also:
Quarter wheel housing outer panel (ASSY): Hatchback
REPLACEMENT
With the quarter panel removed.
REMOVAL
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance
with the body dimension diagram. ...
How to use this manual
1. BODY PANEL REPLACEMENT IN THIS MANUAL
2. SYMBOLS
The following symbols are used in the welding diagrams in section BP of this
manual to indicate cutting areas and the types of weld required ...
