Toyota Yaris: Body panel sealing areas - Paint coating - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body panel sealing areas

HINT: 1) Prior to applying body sealer, clean the area with a rag soaked in silicone remover.

2) If weld-through primer was used, first wipe off any excess and than coat with anti-corrosion primer before applying body sealer.

3) Wipe off excess body sealer with a rag soaked in silicone remover.

4) Besure to repair as necessary if the body sealer shows signs of damage such as peeling or cracking.

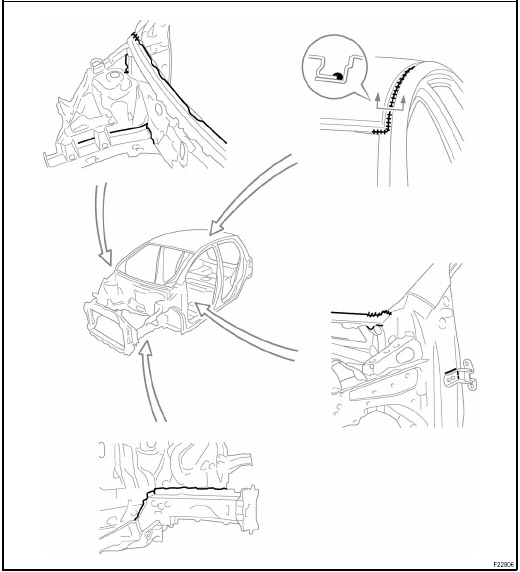

1. ENGINE COMPARTMENT

1. ENGINE COMPARTMENT

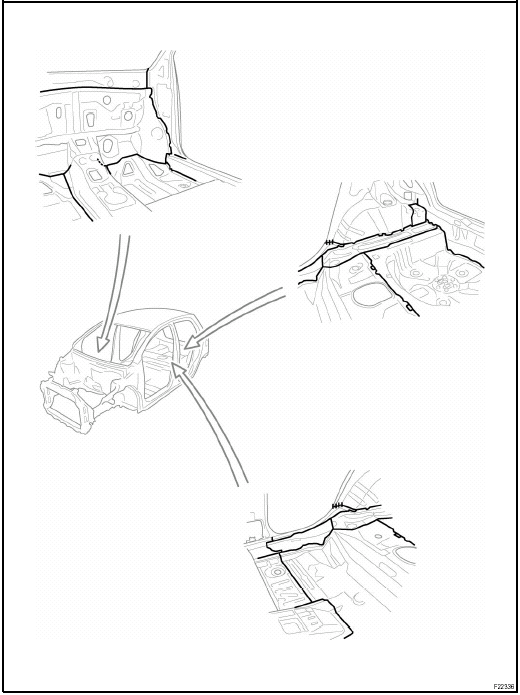

2. INSIDE

2. INSIDE

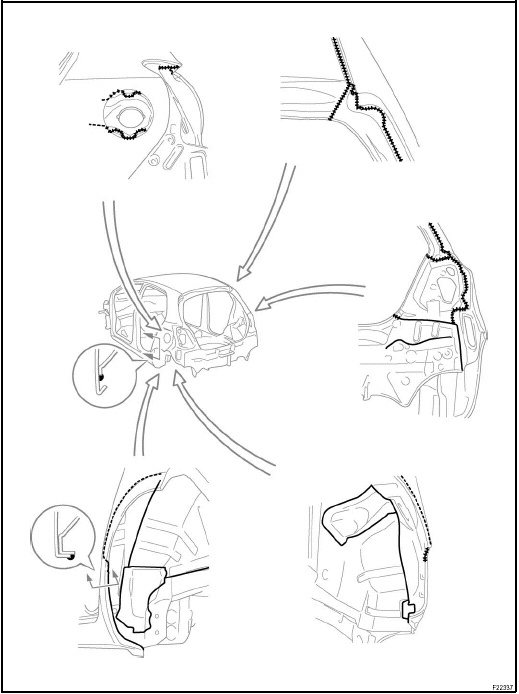

3. OUTSIDE

3. OUTSIDE

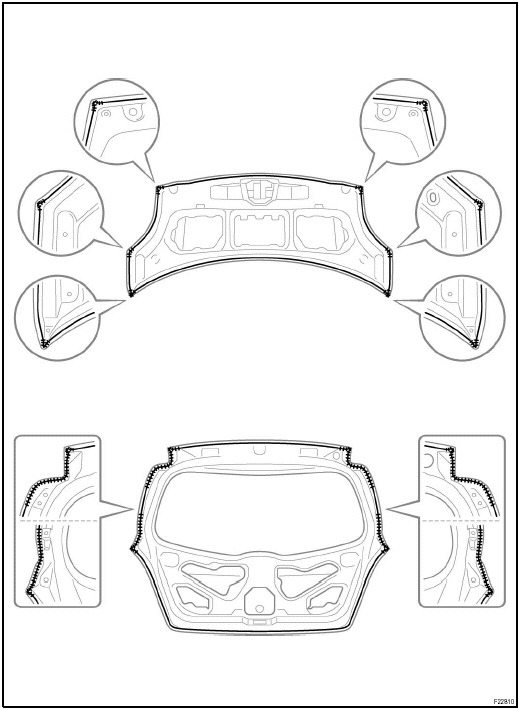

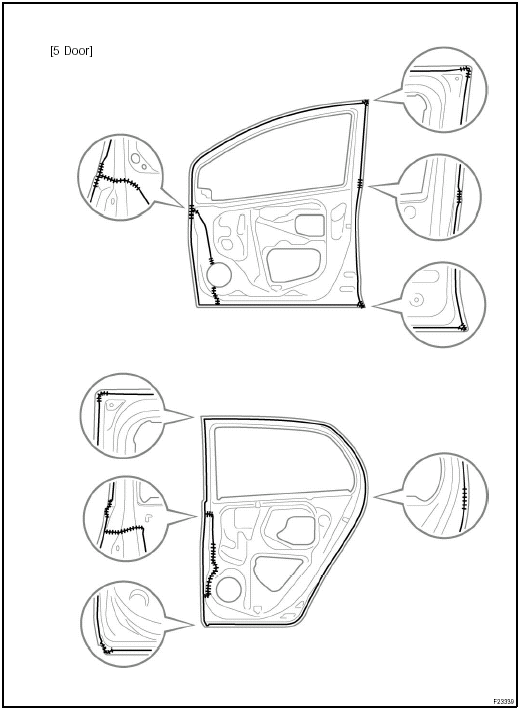

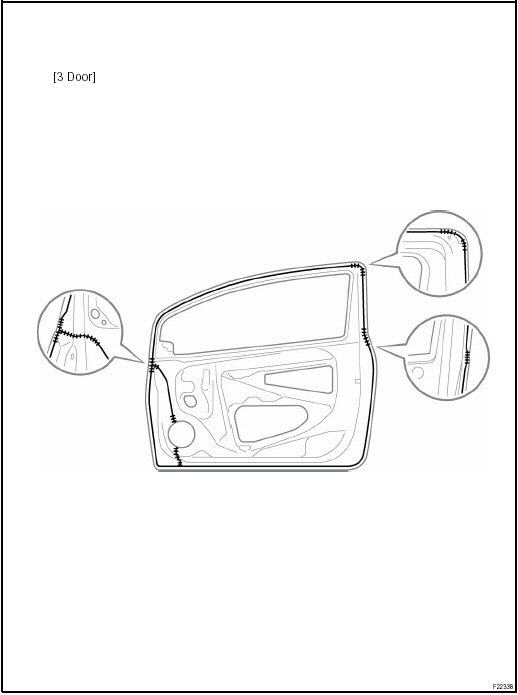

4. DOOR PARTS

4. DOOR PARTS
