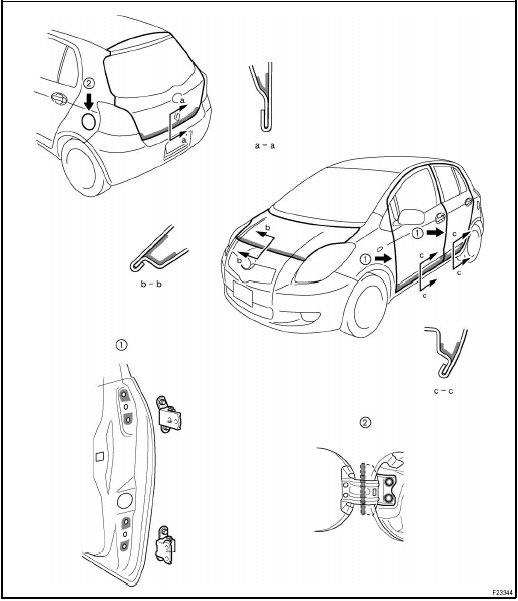

Toyota Yaris: Body panel anti-rust agent (wax) application areas - Paint coating - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body panel anti-rust agent (wax) application areas

HINT: 1) Apply anti-rust agent (wax) around the hinges whenever adjusting the doors and hoods.

2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire application area of the part.

3) Wipe off the anti-rust agent immediately with a rag soaked in silicone remover if it is accidentally applied to other areas.

Body panel anti-chipping paint application areas

    Foamed material application areas
    The sections shown in the figure below are filled with foamed material to provide noise insulation. Refill with foamed materials after repairing these sections and their surrounding sections. HI ...

    Body panel anti-chipping paint application areas
    HINT: 1) Anti-chipping paint should be applied to some areas before the second coat and to other areas after the top coat. 2) Wipe off the paint immediately with a rag soaked in silicone remover if ...
