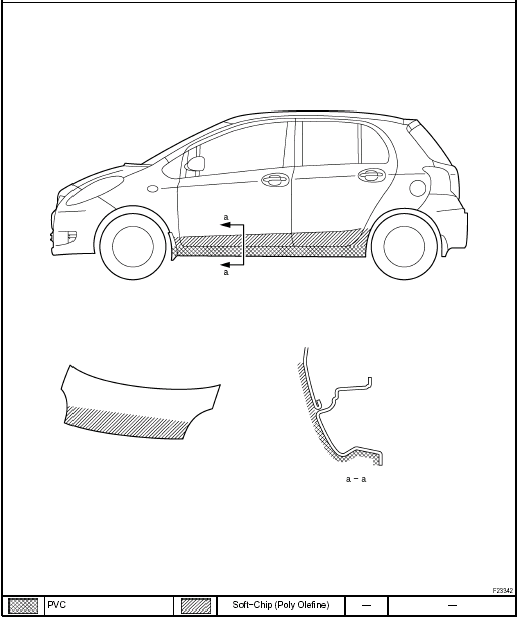

Toyota Yaris: Body panel anti-chipping paint application areas - Paint coating - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body panel anti-chipping paint application areas

HINT: 1) Anti-chipping paint should be applied to some areas before the second coat and to other areas after the top coat.

2) Wipe off the paint immediately with a rag soaked in silicone remover if unrelated areas are accidentally coated.
