Toyota Yaris: Body dimension drawings - Body dimensions - Toyota Yaris XP90 2005–2010 Collision Repair ManualToyota Yaris: Body dimension drawings

ENGINE COMPARTMENT Hatchback

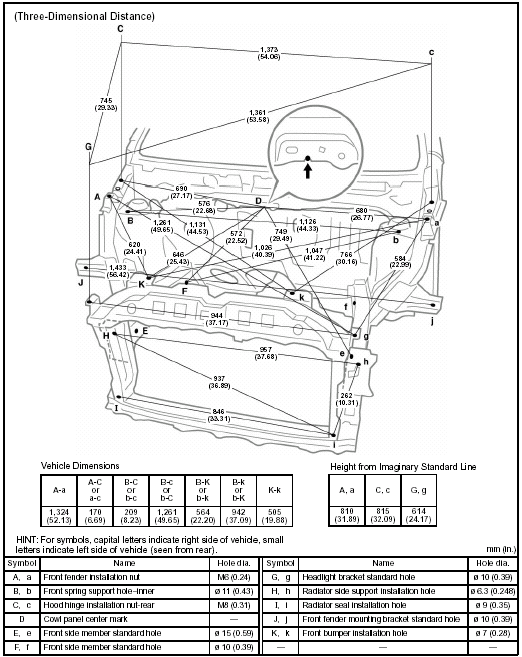

ENGINE COMPARTMENT Sedan

ENGINE COMPARTMENT Sedan

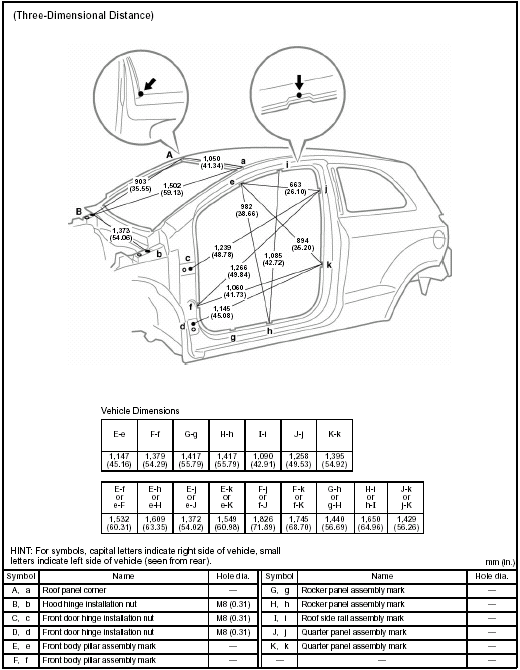

BODY OPENING AREAS (Side View) Hatchback 3 Door

BODY OPENING AREAS (Side View) Hatchback 3 Door

BODY OPENING AREAS (Side View: Front) Hatchback 5 Door

BODY OPENING AREAS (Side View: Front) Hatchback 5 Door

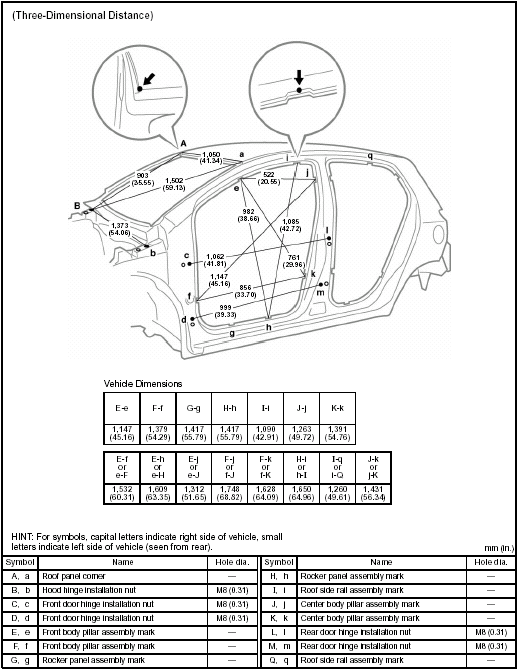

BODY OPENING AREAS (Side View: Rear) Hatchback 5 Door

BODY OPENING AREAS (Side View: Rear) Hatchback 5 Door

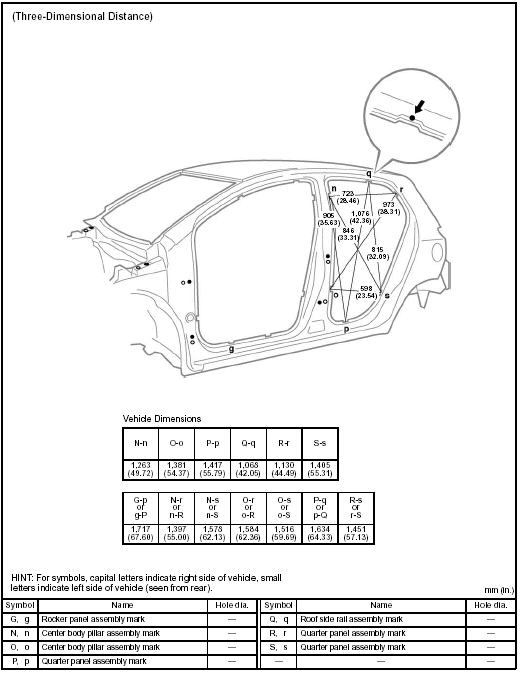

BODY OPENING AREAS (Side View: Front) Sedan

BODY OPENING AREAS (Side View: Front) Sedan

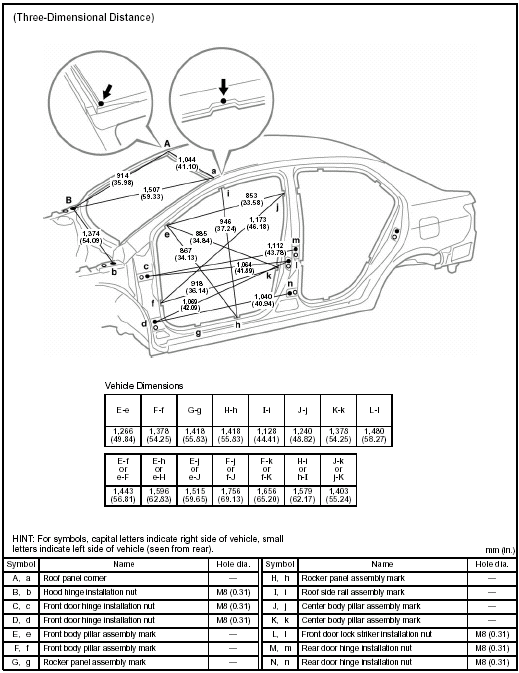

BODY OPENING AREAS (Side View: Rear) Sedan

BODY OPENING AREAS (Side View: Rear) Sedan

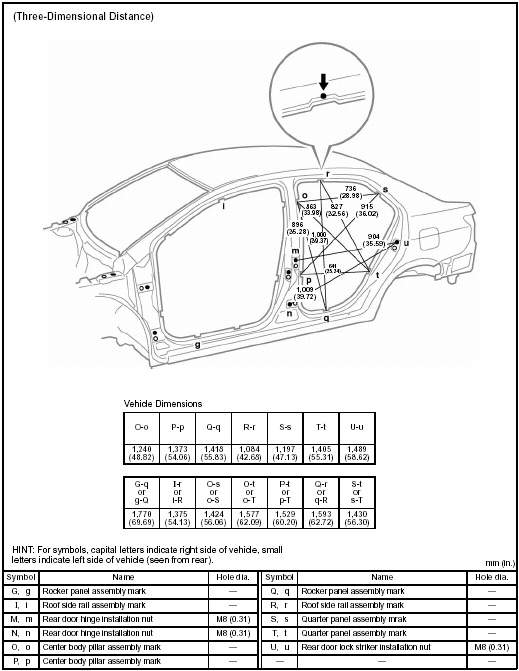

BODY OPENING AREAS (Rear View) Hatchback 5 Door

BODY OPENING AREAS (Rear View) Hatchback 5 Door

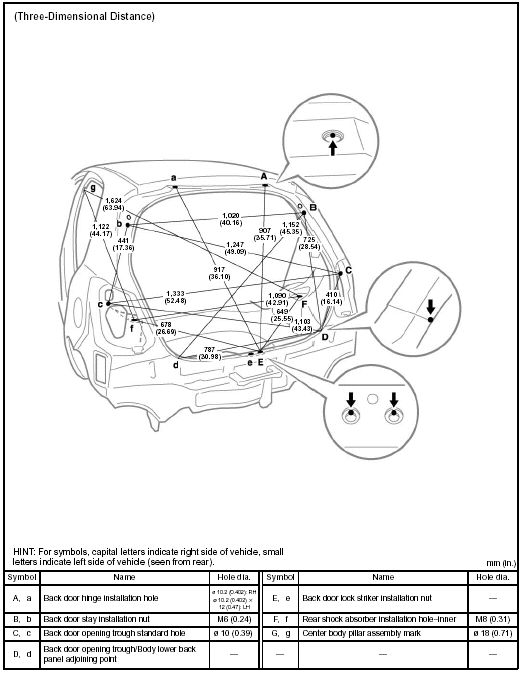

BODY OPENING AREAS (Rear View) Hatchback 3 Door

BODY OPENING AREAS (Rear View) Hatchback 3 Door

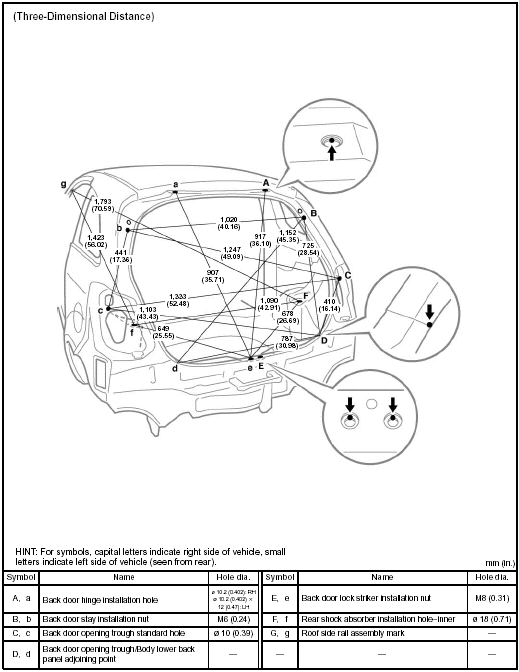

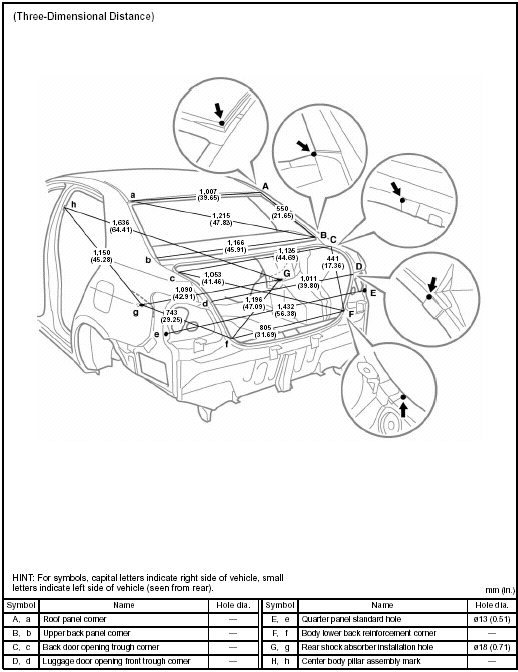

BODY OPENING AREAS (Rear View) Sedan

BODY OPENING AREAS (Rear View) Sedan

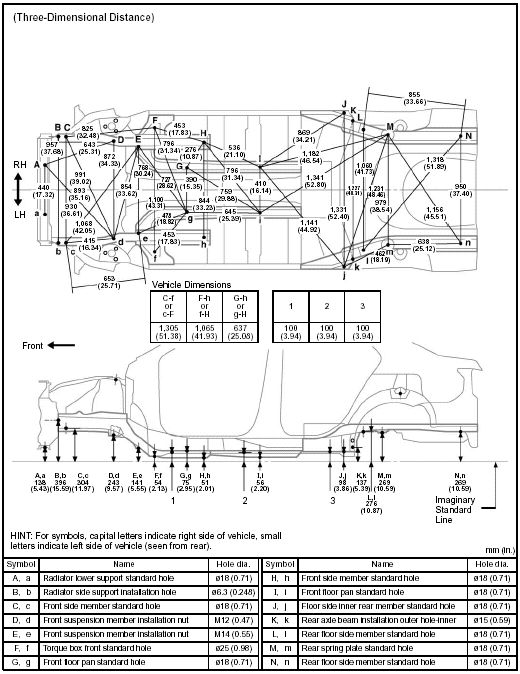

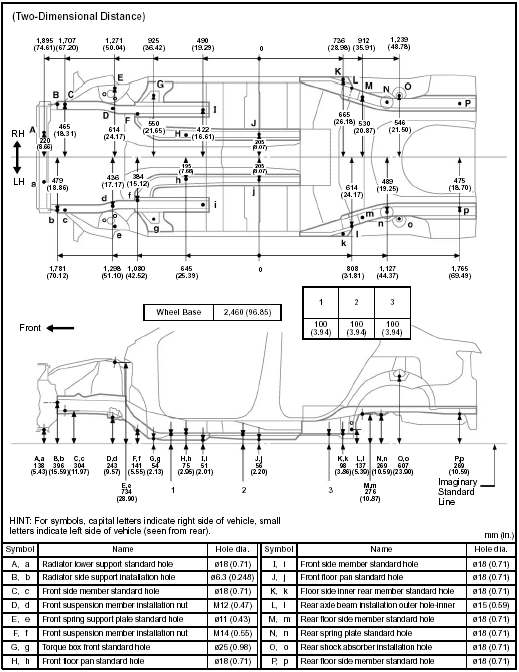

UNDER BODY Hatchback

UNDER BODY Hatchback

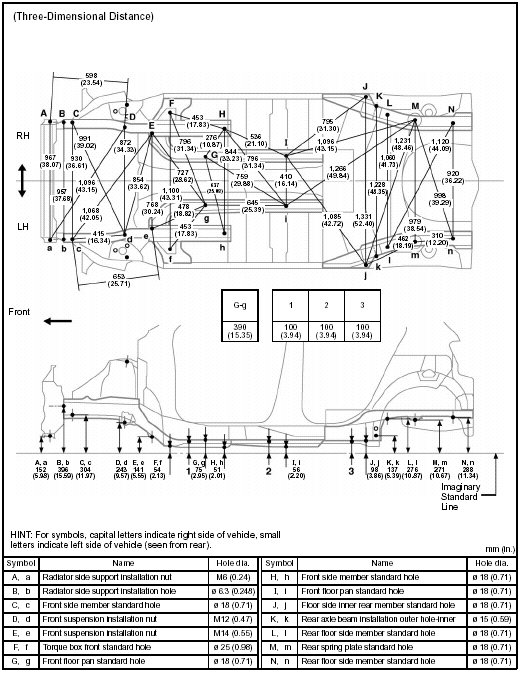

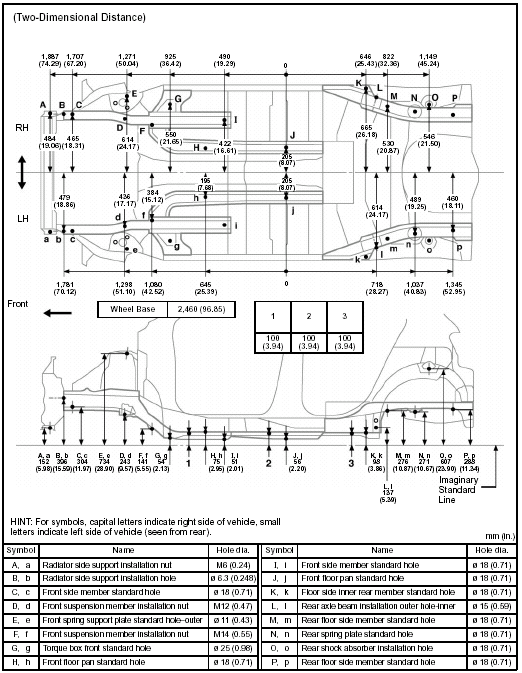

UNDER BODY Sedan

UNDER BODY Sedan

UNDER BODY Hatchback

UNDER BODY Hatchback

UNDER BODY Sedan

UNDER BODY Sedan

ENGINE COMPARTMENT

ENGINE COMPARTMENT

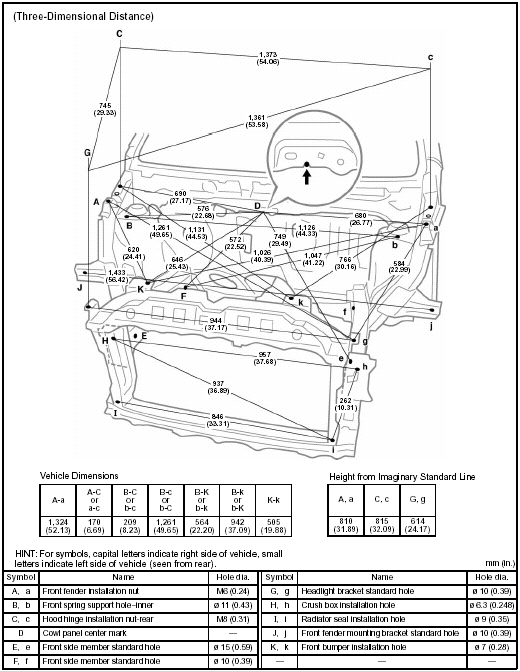

BODY OPENING AREAS (Side View) 3-Door

BODY OPENING AREAS (Side View) 3-Door

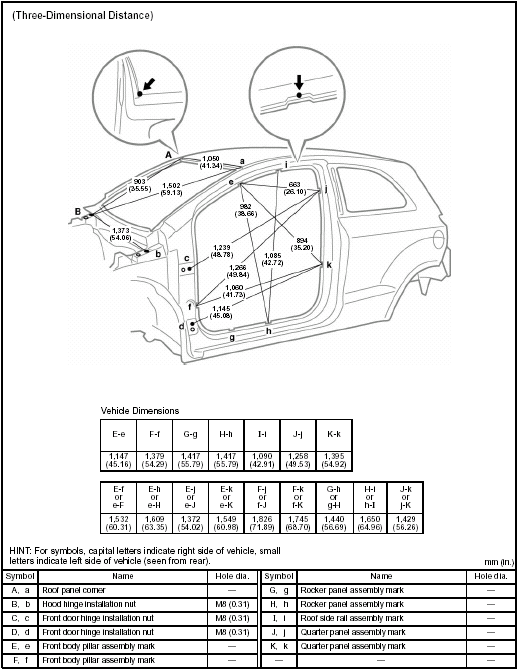

BODY OPENING AREAS (Side View: Front) 5-Door

BODY OPENING AREAS (Side View: Front) 5-Door

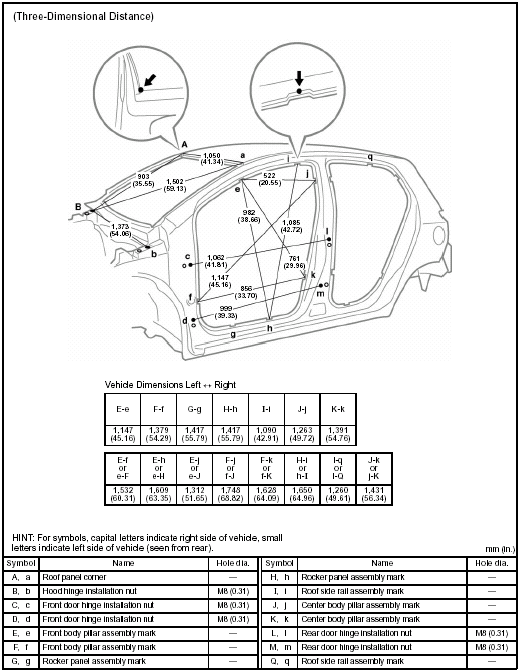

BODY OPENING AREAS (Side View: Rear) 5-Door

BODY OPENING AREAS (Side View: Rear) 5-Door

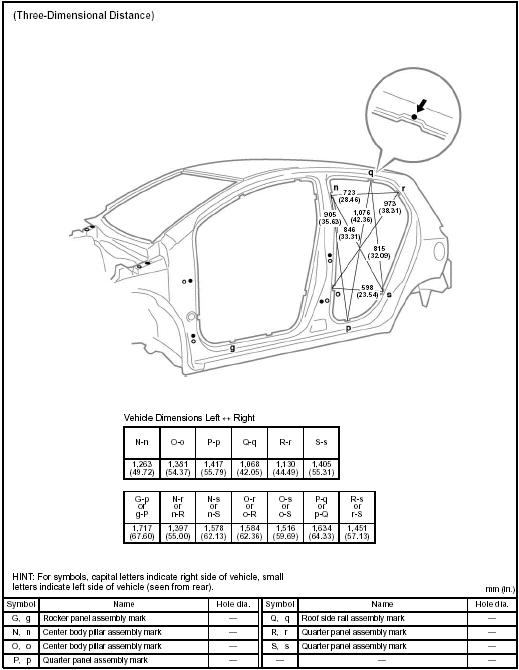

BODY OPENING AREAS (Rear View) 3-Door

BODY OPENING AREAS (Rear View) 3-Door

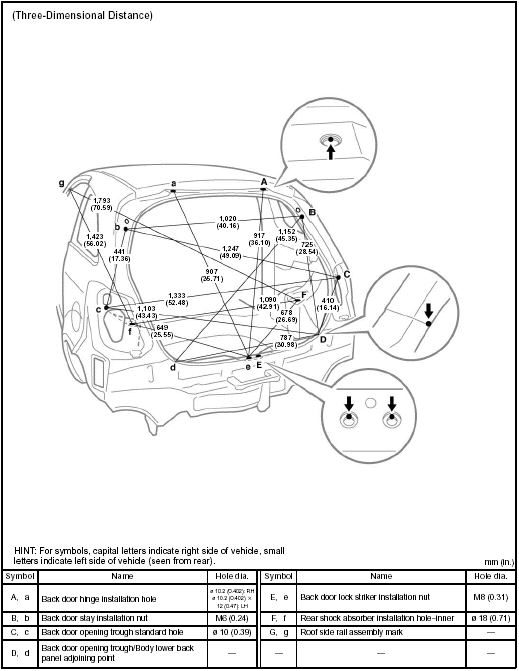

BODY OPENING AREAS (Rear View) 5-Door

BODY OPENING AREAS (Rear View) 5-Door

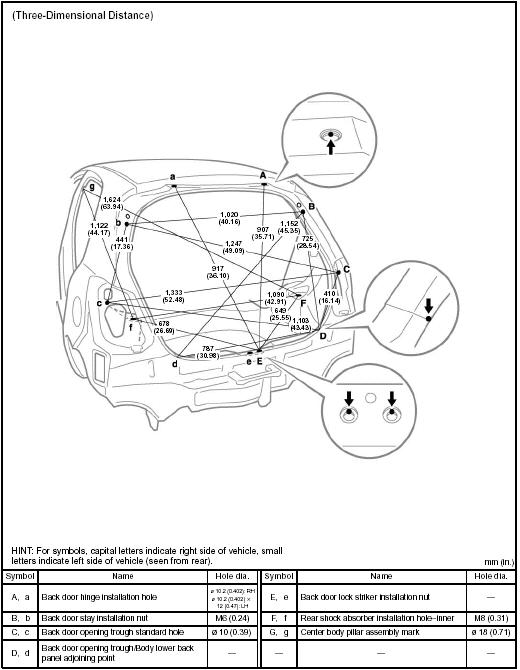

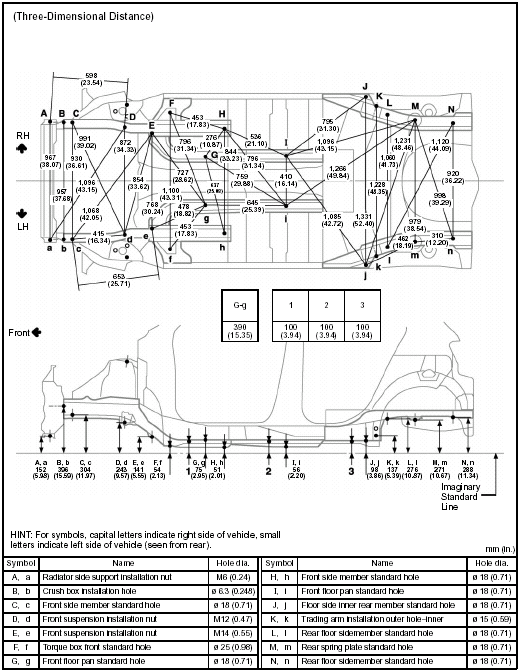

UNDER BODY

UNDER BODY

UNDER BODY

UNDER BODY

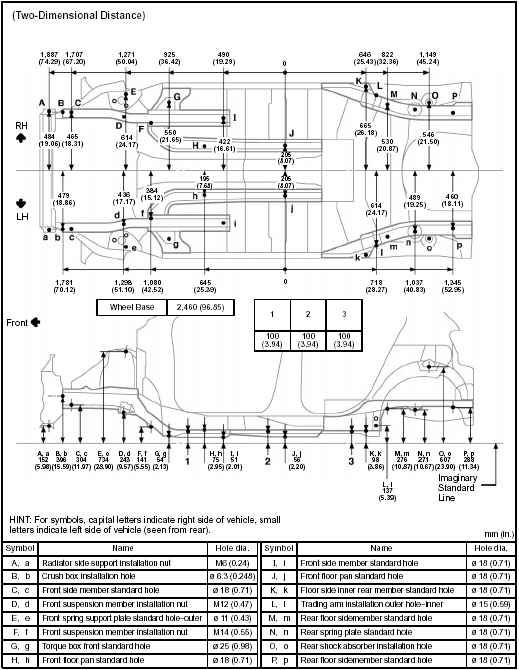

Reference value

    Body dimensions
    ...

    Reference value
    ENGINE COMPARTMENT Hatchboack ENGINE COMPARTMENT Sedan UNDER BODY ...
