Toyota Yaris: Wireless remote control battery - Do-it-yourself maintenance - Maintenance and care - Toyota Yaris XP130 2010–2019 Owner's ManualToyota Yaris: Wireless remote control battery

Replace the battery with a new one if it is depleted.

■ You will need the following items:

● Flathead screwdriver
● Lithium battery CR2016

■ Replacing the battery

Type A

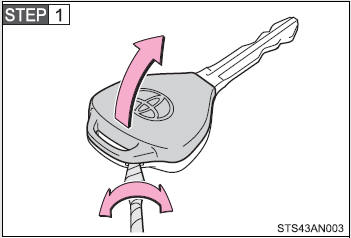

Remove the cover. To prevent damage to the key, cover the tip of the screwdriver

Remove the cover. To prevent damage to the key, cover the tip of the screwdriver with a tape.

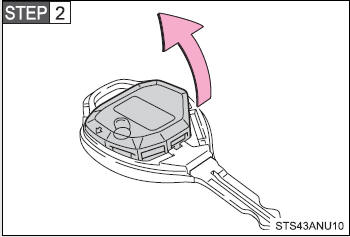

Remove the module.

Remove the module.

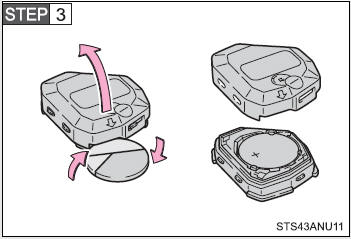

Open the case cover using a coin protected with tape etc. and remove the depleted

Open the case cover using a coin protected with tape etc. and remove the depleted battery.

Insert a new battery with the “+” terminal facing up.

Type B

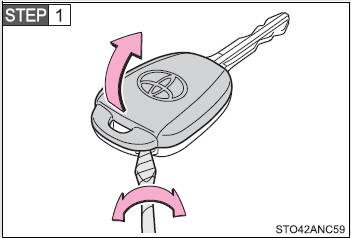

Remove the cover.

Remove the cover.

To prevent damage to the key, cover the tip of the screwdriver with a tape. To prevent the buttons from being disassembled, face the button surface downward.

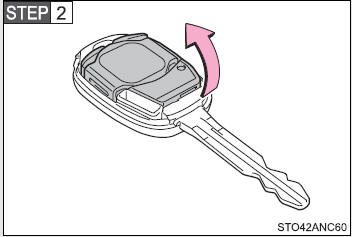

Remove the module.

Remove the module.

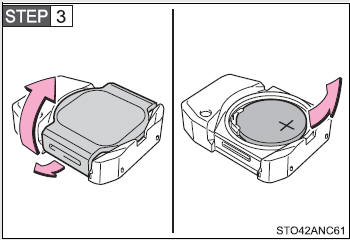

Open the case cover and remove the depleted battery.

Open the case cover and remove the depleted battery.

Insert a new battery with the “+” terminal facing up.

■Use a CR2016 lithium battery

●Batteries can be purchased at your Toyota dealer, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.

■If the key battery is depleted

The following symptoms may occur:

●The wireless remote control will not function properly.
●The operational range will be reduced.

■When replacing the module (type B only)

Replace the module from right above. Replacing it from diagonally above may prevent

Replace the module from right above. Replacing it from diagonally above may prevent the key buttons from operating properly.

CAUTION

■Removed battery and other parts

These parts are small and if swallowed by a child, they can cause choking. Keep away from children. Failure to do so could result in death or serious injury.

NOTICE

■For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.
