Toyota Yaris: Wireless remote control - Opening, closing and locking the doors - Before driving - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: Wireless remote control

The wireless remote control can be used to lock and unlock the vehicle.

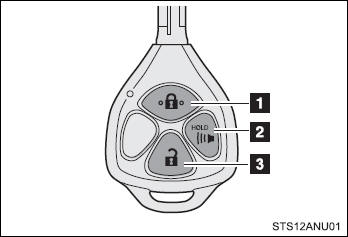

Type A

Locks all the doors

Sounds the alarm (press and hold)Locks all the doors

Unlocks all the doorsSounds the alarm (press and hold)

Pressing the button unlocks the driver’s door. Pressing the button again withinUnlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Type B

Locks all the doors

Unlocks all the doorsLocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again withinUnlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

■Operation signalsSounds the alarm (press and hold)

■Operation signals

The emergency flashers flash to indicate that the doors have been locked/ unlocked. (Locked: once; Unlocked: twice)

■Panic mode

When is pressed for longer than about

When 1 second, an alarm will sound intermittently and the vehicle lights will flash tois pressed for longer than about 1 second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the wireless remote control.

■Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

■Alarm (if equipped)

Using the wireless remote control to lock the doors will set the alarm system. (→P. 74)

■Conditions affecting operation

The wireless remote control function may not operate normally in the following situations:

●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone or other wireless communication device
●When the wireless key is in contact with, or is covered by a metallic object
●When another wireless key (that emits radio waves) is being used nearby
●If window tint with a metallic content or metallic objects are attached to the rear window

■Key battery depletion

If the wireless remote control function does not operate, the battery may be depleted. Replace the battery when necessary. (→P. 271)

■Customization that can be configured at Toyota dealer

Settings (e.g. wireless remote control system) can be changed. (Customizable features →P. 368)

■Certification for wireless remote control

U.S.A.

FCC ID: HYQ12BBY FCC ID: HYQ23AAA

NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada

NOTE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
