Toyota Yaris: Using the interior lights

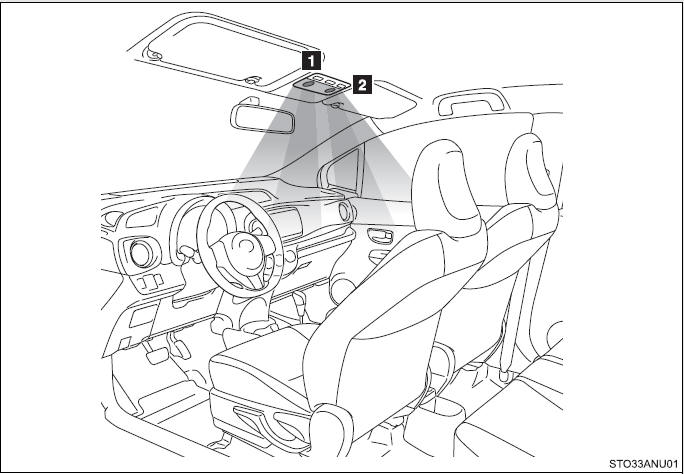

Interior lights list
Personal lights (→P. 203)
Interior light (→P. 203)
Personal lights
Turns the lights on/off

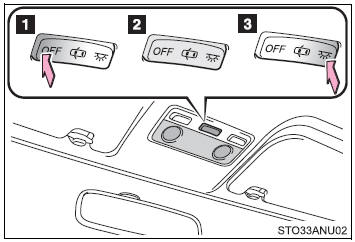

Interior light
Turns the lights off
Turns the lights on/off linked to
door position
Turns the lights on
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position, whether the doors are locked/unlocked, and whether the doors are open/ closed.
■To prevent battery discharged
If the interior light remains on when the door is not fully closed and the interior light switch is in the door position, the lights will go off automatically after 20 minutes.
■Customization that can be configured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed. (Customizable features →P. 368)
