Toyota Yaris: Tire inflation pressure - Do-it-yourself maintenance - Maintenance and care - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: Tire inflation pressure

■ Tire inflation pressure

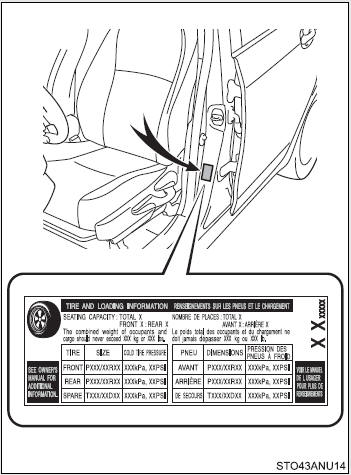

The recommended cold tire inflation pressure and tire size are displayed on the tire and loading information label. (→P. 351)

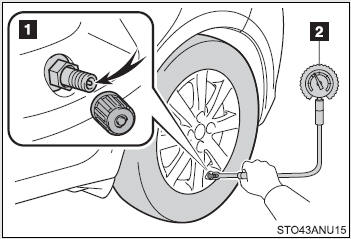

■ Inspection and adjustment procedure

■ Inspection and adjustment procedure

Tire valve

Tire pressure gauge Tire valve

Tire pressure gauge

Remove the tire valve cap.

Remove the tire valve cap.

Press the tip of the tire pressure gauge onto the tire valve.

Press the tip of the tire pressure gauge onto the tire valve.

Read the pressure using the gauge gradations.

Read the pressure using the gauge gradations.

If the tire inflation pressure is not at the recommended level, adjust the pressure.

If the tire inflation pressure is not at the recommended level, adjust the pressure. If you add too much air, press the center of the valve to deflate.

After completing the tire inflation pressure measurement and adjustment, apply

After completing the tire inflation pressure measurement and adjustment, apply soapy water to the valve and check for leakage.

Put the tire valve cap back on.

Put the tire valve cap back on.

■Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once a month. Do not forget to check the spare.

■Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train

If a tire needs frequent inflating, have it checked by your Toyota dealer.

■Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading.
●Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressures that is even just a few pounds off can affect ride quality and handling.
●Do not reduce tire inflation pressure after driving. It is normal for tire inflation pressure to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.

CAUTION

■Proper inflation is critical to save tire performance

Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury:

●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Poor sealing of the tire bead
●Wheel deformation and/or tire separation
●A greater possibility of tire damage from road hazards

NOTICE

■When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on. Without the valve caps, dirt or moisture could get into the valve and cause air leakage, which could result in an accident. If the caps are lost, replace them as soon as possible.
