Toyota Yaris: Indicators and warning lights - Instrument cluster - When driving - Toyota Yaris XP130 20102014 Owner's ManualToyota Yaris: Indicators and warning lights

The indicators and warning lights on the instrument cluster, center panel and dashboard inform the driver of the status of the vehicles various systems.

Instrument cluster (vehicles without a tachometer)

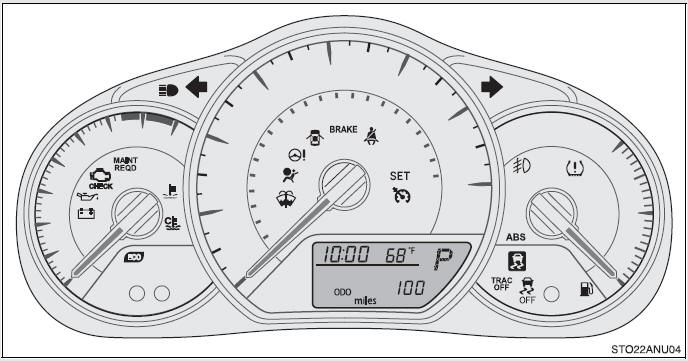

Instrument cluster (vehicles with a tachometer)

Instrument cluster (vehicles with a tachometer)

Center panel

Center panel

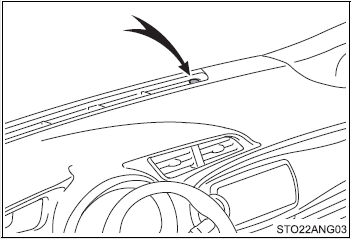

Dashboard

Dashboard

■ Indicators

■ Indicators

The indicators inform the driver of the operating state of the vehicles various systems.

Turn signal indicator (→P. 130)

Turn signal indicator (→P. 130)

Headlight high beam indicator (→P. 146)

Headlight high beam indicator (→P. 146)

(if equipped)

(if equipped)

Front fog light indicator (→P. 148)

Low engine coolant temperature indicator Indicates the engine coolant temperature

Low engine coolant temperature indicator Indicates the engine coolant temperature is cool.

(if equipped)

(if equipped)

Engine immobilizer/ alarm system indicator (→P. 72, 74)

(vehicles with an automatic transmission)

(vehicles with an automatic transmission)

Eco Driving Indicator Light (→P. 115)

(vehicles with an automatic transmission)

(vehicles with an automatic transmission)

Shift position and shift range indicator (→P. 127)

(if equipped)

(if equipped)

Cruise control indicator (→P. 158)

(if equipped)

(if equipped)

Cruise control SET indicator (→P. 158)

 *1,2

 *1,2

Slip indicator (→P. 163)

*1

*1

VSC OFF indicator (→P. 164)

*1

*1

TRAC OFF indicator (→P. 163)

*1

*1

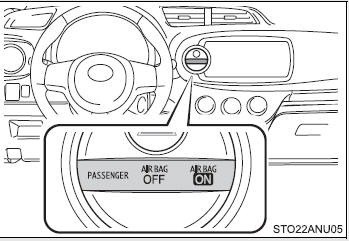

AIR BAG ON indicator (→P. 92)

*1

*1

AIR BAG OFF indicator (→P. 92)

*1: These lights turn on when the engine switch is turned to the ON position to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*2: The light flashes to indicate that the system is operating.

■ Warning lights

Warning lights inform the driver of malfunctions in any of the vehicles systems. (→P. 305)

*1

(except Canada)

(except Canada)

*1

(Canada)

(Canada)

*1

*1

*1

*1

*1

*1

*1

(except Canada)

(except Canada)

*1

(Canada)

(Canada)

*1

*1

*1

(except Canada)

(except Canada)

*1

(Canada)

(Canada)

*1

*1,2

*1,2

*3

*3

(if equipped)

(if equipped)

*1

*1

(except Canada)

(except Canada)

(if equipped)

(if equipped)

*1

(except Canada)

(except Canada)

*1: These lights turn on when the engine switch is turned to the ON position to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

*2: The light flashes to indicate that the system is operating and come on to indicate a malfunction.

*3: The light flashes to indicate a malfunction.

CAUTION

■If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning light not come on when you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.
