Toyota Yaris: Headlight switch - Operating the lights and wipers - When driving - Toyota Yaris XP130 2010–2018 Owner's ManualToyota Yaris: Headlight switch

The headlights can be operated manually.

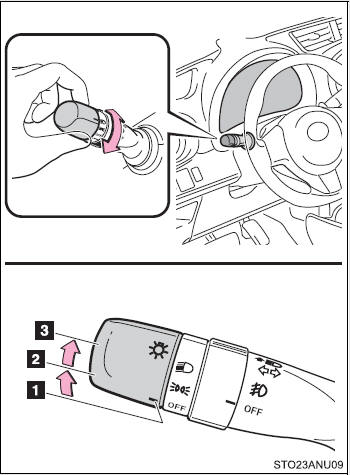

Turning the end of the lever turns on the lights as follows:

Type A

OFF

OFF

Vehicles with daytime running light system: The daytime running lights turn on.

The side marker, parking, tail, license plate, daytime running lights (if equipped)

The side marker, parking, tail, license plate, daytime running lights (if equipped) and instrument panel lights turn on.

The headlights and all lights listed above (except daytime running lights) turn

The headlights and all lights listed above (except daytime running lights) turn on.

Type B

Off

Off

Vehicles with daytime running light system: The daytime running lights turn on.

The side marker, parking, tail, license plate, daytime running lights (if equipped)

The side marker, parking, tail, license plate, daytime running lights (if equipped) and instrument panel lights turn on.

The headlights and all lights listed above (except daytime running lights) turn

The headlights and all lights listed above (except daytime running lights) turn on.

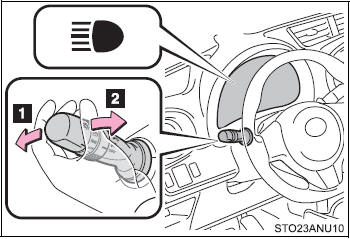

Turning on the high beam headlights

With the headlights on, push the lever away from you to turn on the high beams.

With the headlights on, push the lever away from you to turn on the high beams.

Pull the lever toward you to the center position to turn the high beams off.

Pull the lever toward you and release it to flash the high beams once.

Pull the lever toward you and release it to flash the high beams once.

You can flash the high beams with the headlights on or off.

■Daytime running light system (if equipped)

●To make your vehicle more visible to other drivers, the headlights turn on automatically (at a reduced intensity) whenever the engine is started and the parking brake is released. Daytime running lights are not designed for use at night.
●Compared to turning on the headlights, the daytime running light system offers greater durability and consumes less electricity, so it can help improve fuel economy.

■Light reminder buzzer

A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC” position and the driver’s door is opened while the lights are turned on.

■Battery-saving function (vehicles with an alarm system or daytime running light system)

In all following conditions, the headlights and the other remaining lights will go off automatically after 20 minutes in order to prevent the vehicle battery from being discharged:

●The engine switch is in the “LOCK” position.
●The headlights and/or tail lights are on.
This function will be canceled in any of the following situations:

●When the engine switch is turned to the “ON” position.
●When the light switch is operated.
●When the door is opened or closed.

NOTICE

■To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not running.
